PD1275W-GL Industrial gigabit 90w POE splitter-POEPlus - Built Green Networks-30/60/90w industrial DC input POE injector & industrial POE splitter

PD1275W-GL

90W POE splitter

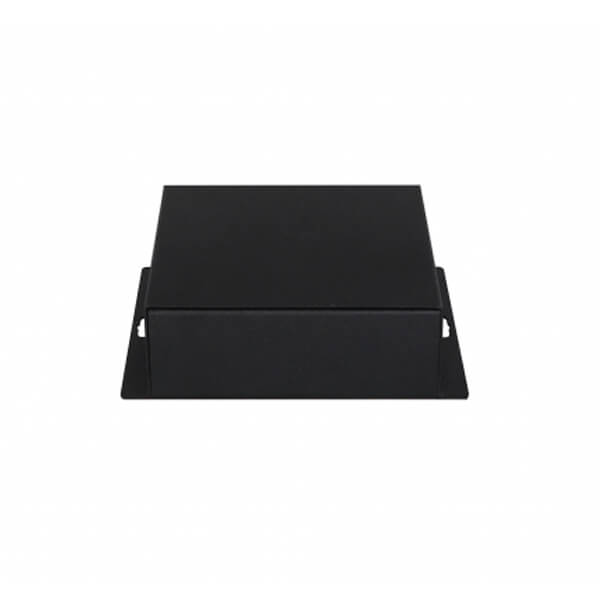

wall mounted metal case
12V 7.5A max 90w output
802.3bt compatible
10/100/1000Mbps auto adaptive
Isolation design is adopted

PD1275W-GL Overview

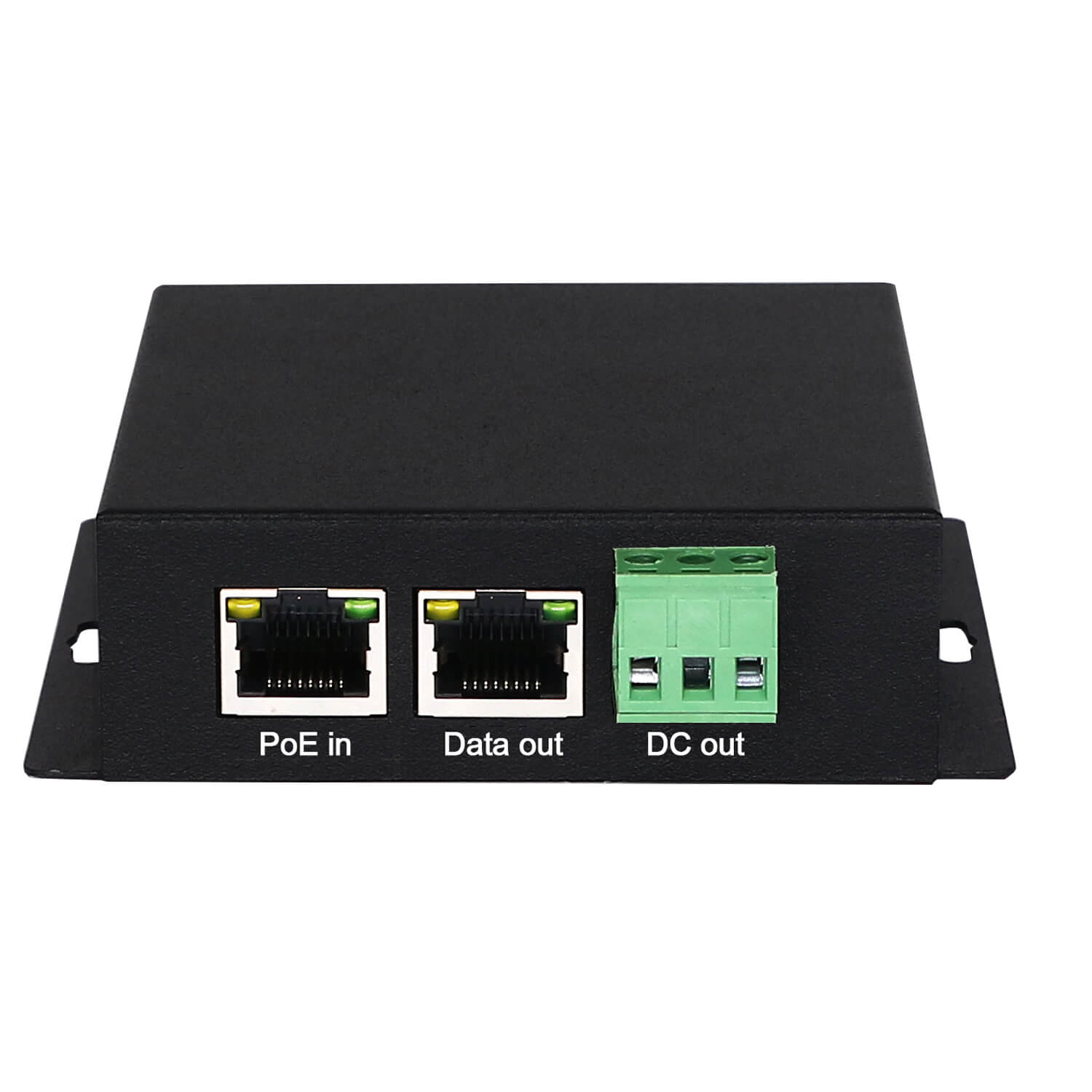

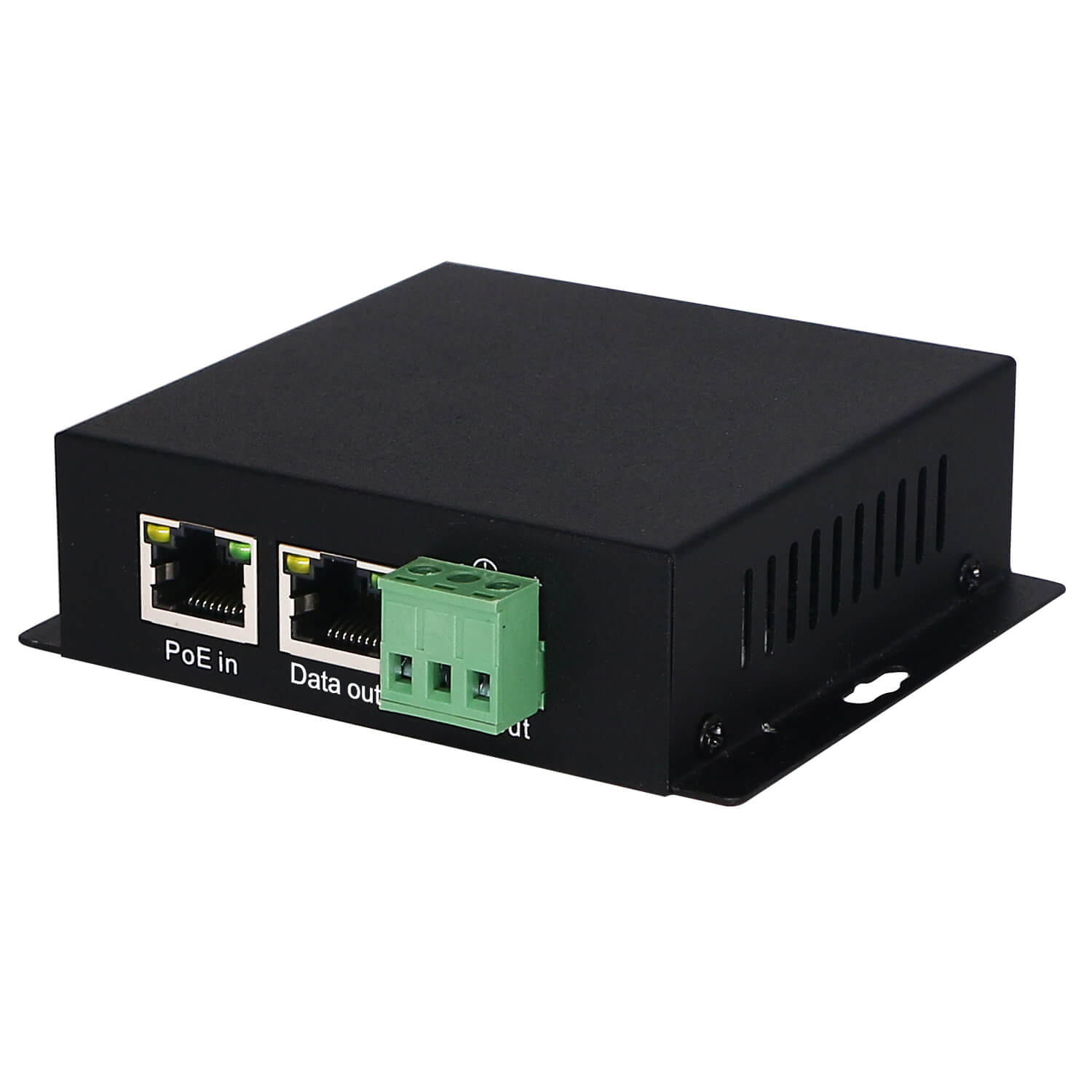

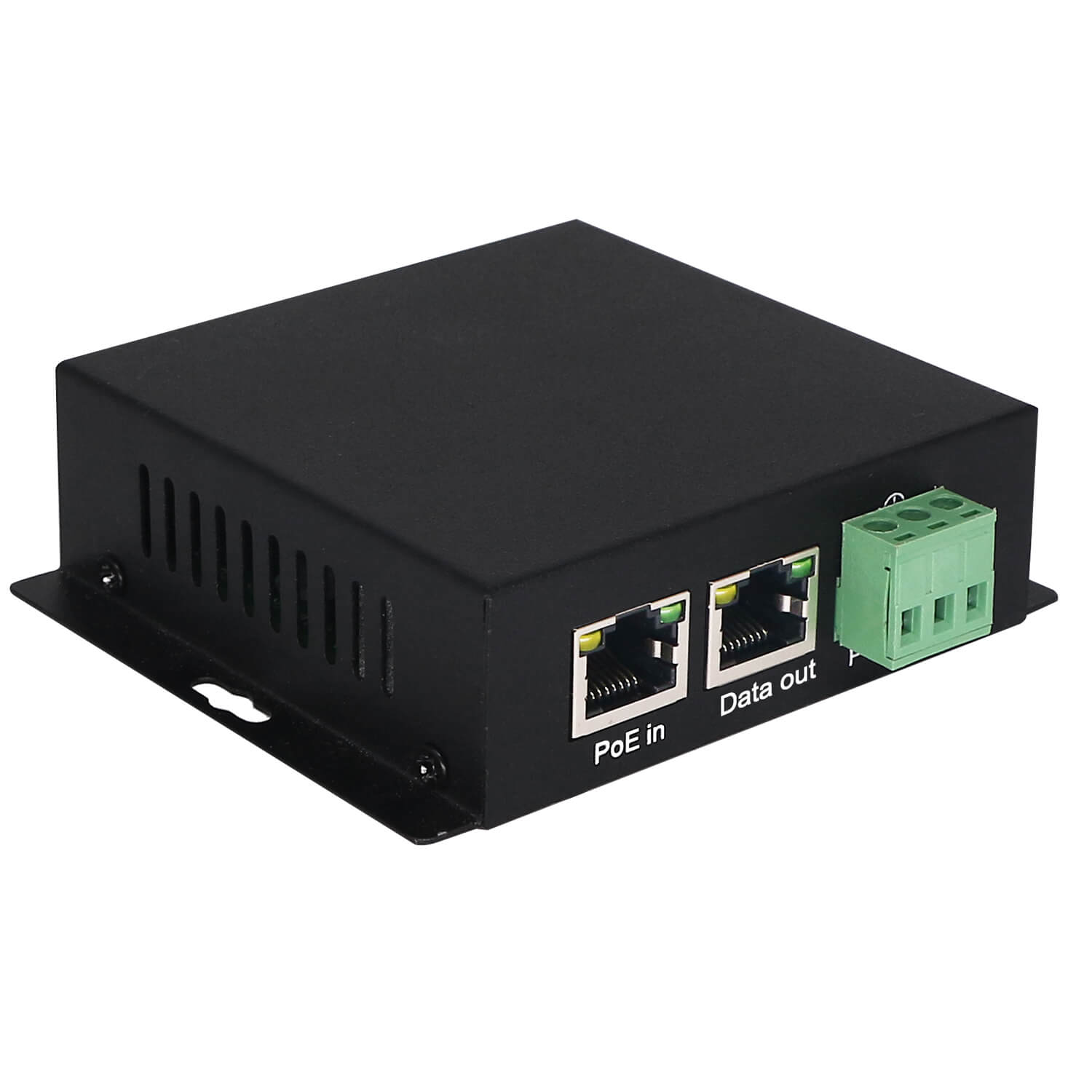

PD1275W-GL is a wall mounted POE splitter, it is compatible with 802.3bt standard, accepts max 90w POE input and 12V 7.5A output. PD1275W-GL provides one POE input port，one pure data RJ45 port+DC terminal block power output. Isolation design is adopted， it can be used to power IP camera and wireless radio etc.

PD1275W-GL Specification

Model Number	PD1225W-GL	PD1250W-GL	PD1275W-GL
Product name	Industrial POE splitter isolated
Ports	1PoE in +1Data OUT+1*DC OUT（terminal block）
Rate	10/100/1000Mbps
PoE protocol	IEEE802.3AF/AT/BT compliant
PoE OUT Pin	12+36-/45+78-
PoE Power output	30W	60W	90W
Output parameter	12V 2.5A	12V 5A	12V 7.5A
Transmission medium	10Base-T: UTP CAT 3,4,5(Max 150m) 100BASE-TX: UTP CAT 5, 5e cable (Max 150m) 1000BASE-TX: UTP CAT 5e，6 cable (Max 150m)
LED indicator	PoE in：Orange/POE input；Green/Network connection DaTa OUT：Orange/100M；Green/1000M
Lightning protection	3KV/1.5KV（isolation）
Working temperature	-40℃~80℃
Size	83mm80mm28mm
Weight	0.16kg

PD1275W-GL

90W POE splitter

Thanks a lot for your inquiry and we will handle it as early as possible.

PD1275W-GL Overview

PD1275W-GL Specification

Relevant Products

PSE5675G-IDS

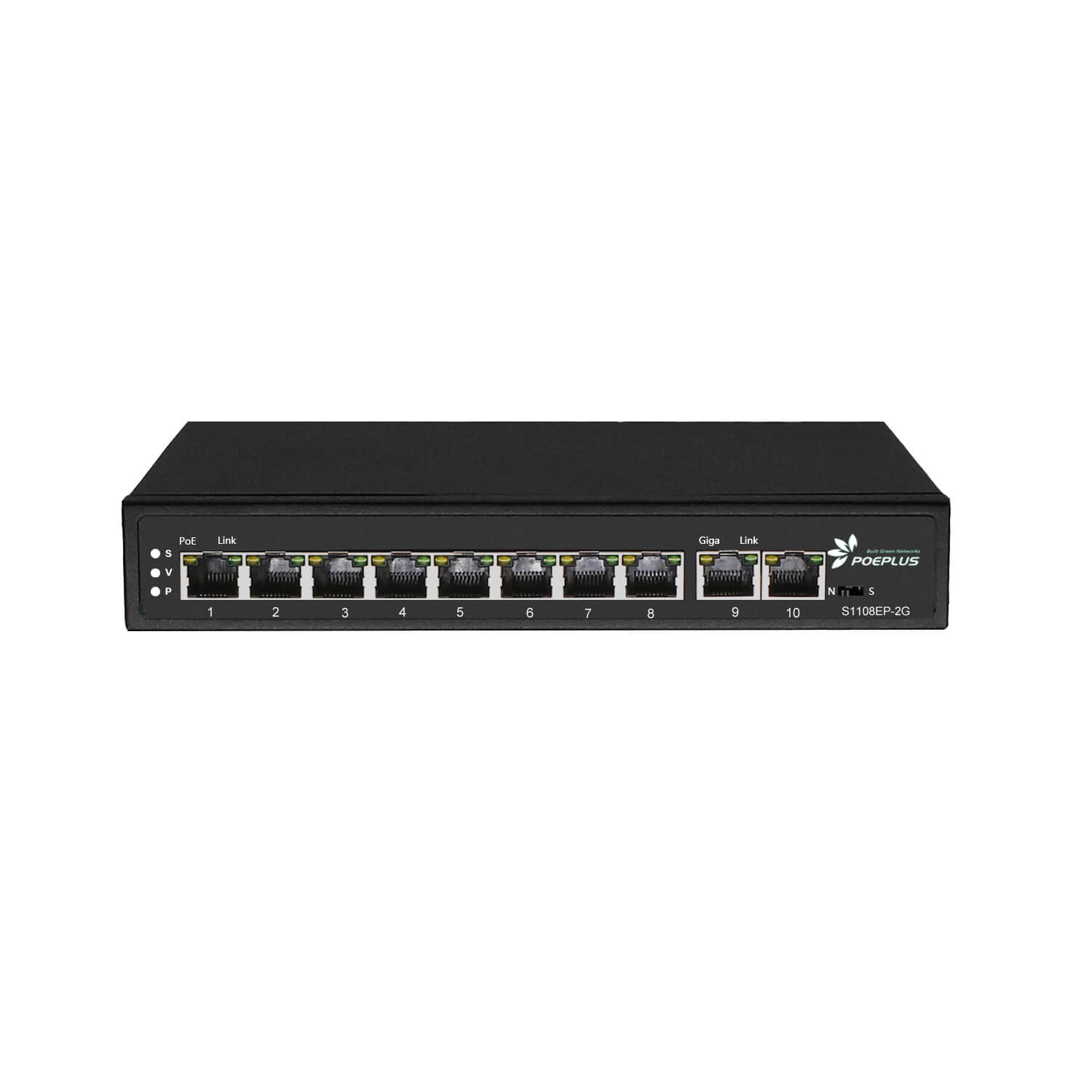

S1108EP-2G
