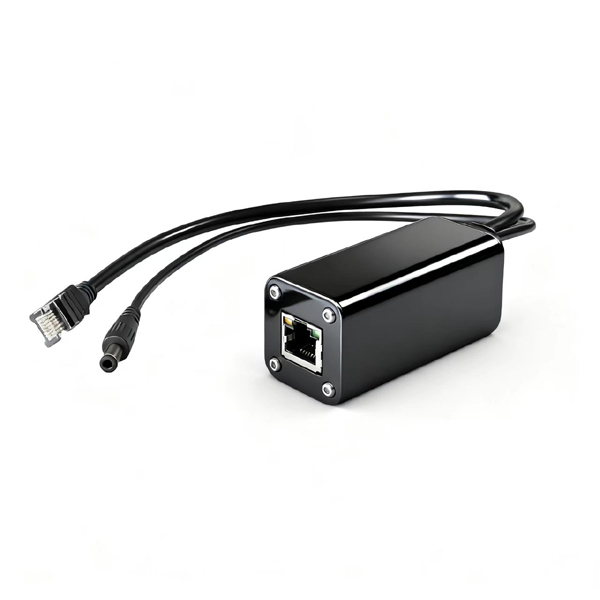

PD25A

2.5Gbps 802.3at POE splitter

Small size, aluminum alloy housing
802.3at compliance max 25w output
DIN rail / wall mounted / Desktop installation
industrial grade

Overview Specification

EC5230B-Pro

industrial POE injector DC input 48V

48Vdc-56Vdc input
Shielded RJ45 connectors to ground plane
IP40 rated Gigabit max 30w POE Injector
Passive POE 45+,78- and 12+,36- alternative
Deliver power up to 100m (328 ft.) away

Overview Specification

EC5265B

DC input 48V 60w Gigabit POE injector

 48Vdc-56Vdc input
 Shielded RJ45 connectors to ground plane
 IP40 rated Gigabit max 60w POE Injector
 Passive POE 1245+,3678- and 12+,36- alternative
 Deliver power up to 100m (328 ft.) away

Overview Specification

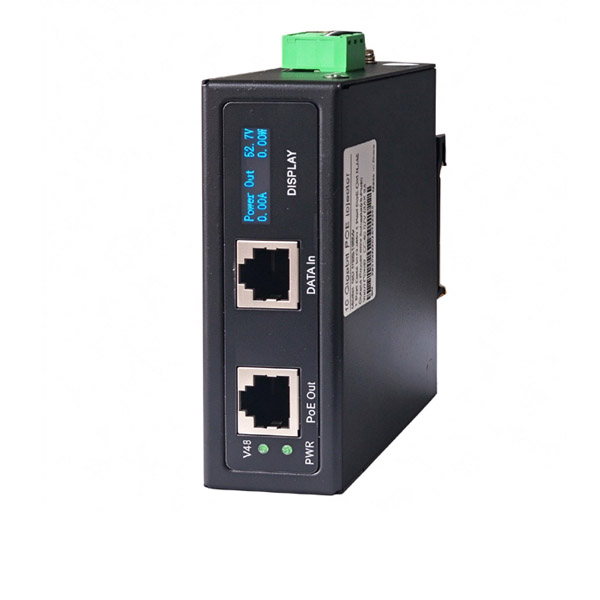

PSE120W-GS-LCD 1.1

120W POE injector with LCD display

• IP40 rated Gigabit 802.3AT/BT/PoE++ Injector
• Max 120w POE output
• Network a PoE device located up to 100m (328 ft.) away
• Extreme -40 to 80 °C operating temperature range
• DC inputs with overload current protection

Overview Specification

EC950A/B

DC input POE injector compatible with Mimosa

 50V POE output 1245+；3678-
 IP40 rated 1G/2.5Gbe max 90w POE Injector
 Power antenna up to 100m (328 ft.) away
 Extreme -40 to 80 °C operating temperature range
 Support DC inputs

Overview Specification

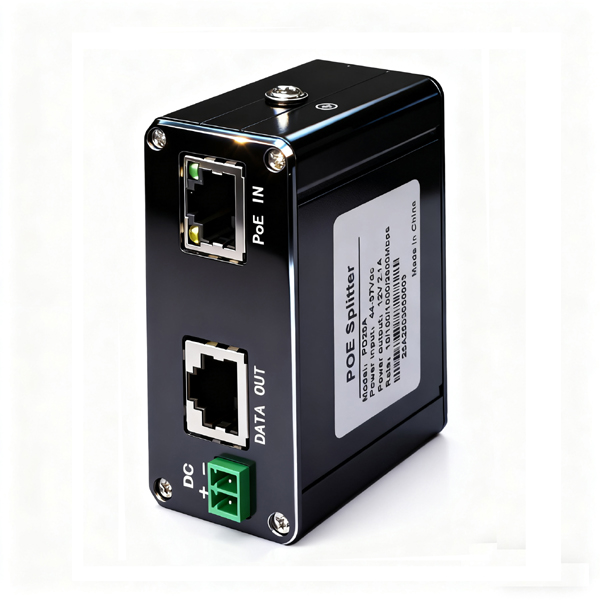

PD72A

2.5Gbe multi port output POE splitter

1*10/100/1000/2500Mbps RJ45 PoE IN
1*10/100/1000/2500Mbps RJ45 Data OUT
1*DC2.0 power input interface（44V-57V）
1*DC2.0 power output interface（Max:12V/5A）
1*DC Out(2P) power terminal (Max:24V/3A)

Overview Specification

SP2430B

DC input 24v 30w POE injector

20Vdc-36Vdc input
Shielded RJ45 connectors to ground plane
IP40 rated Gigabit max 30w POE Injector
Passive POE 45+,78- and 13+,36- alternative
Deliver power up to 100m (328 ft.) away

Overview Specification

EC550-SKV3

Dual power 150W DC input PoE Injector for starlink Gen3

24V/57V POE output selectable
IP40 rated Gigabit max 150w POE Injector
Passive POE 1236+ 4578-
Extreme -40 to 80 °C operating temperature range
Support DC inputs

Overview Specification

EC550-SKV2

150w DC input POE injector for starlink Gen2

IP40 rated Gigabit max 150w POE Injector
Passive POE 1236+ 4578-
Power antenna up to 100m (328 ft.) away
Extreme -40 to 80 °C operating temperature range
Support DC inputs

Overview Specification

PD2450W- IS

120W POE splitter 12V 10A/24V 5A/48V 2.5A

Industrial grade
DIN rail installation
12V 10A|24V 5A|48V 2.5A available
MAX 120W POE splitter

Overview Specification

PD1275W- IDS

90w gigabit industrial POE splitter

3KV lightning protection
Isolation design
Industrial grade max 90w output
IEEE802.3AF/AT/BT compliant
12/16/24/48V DC output selectable

Overview Specification

PSE30W-G（U）S

Industrial gigabit 30w active DC input POE injector

IP40 rated Gigabit 802.3AF/AT Injector
Max 30w POE output
Network a PoE device located up to 100m (328 ft.) away
Extreme -40 to 80 °C operating temperature range
DC inputs with overload current protection

Overview Specification

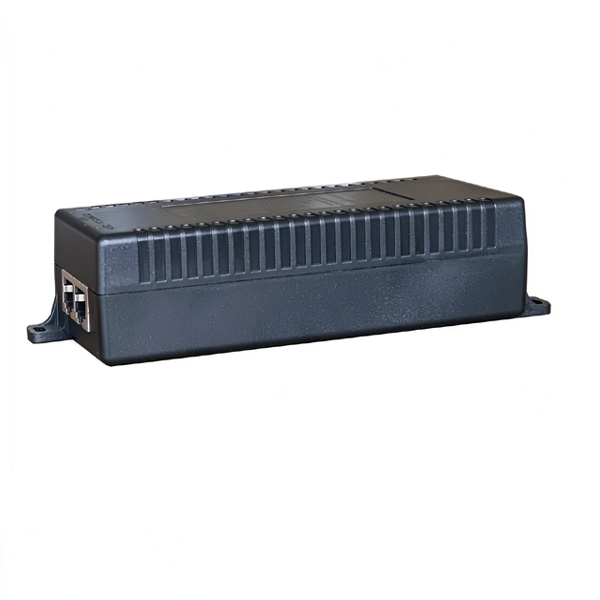

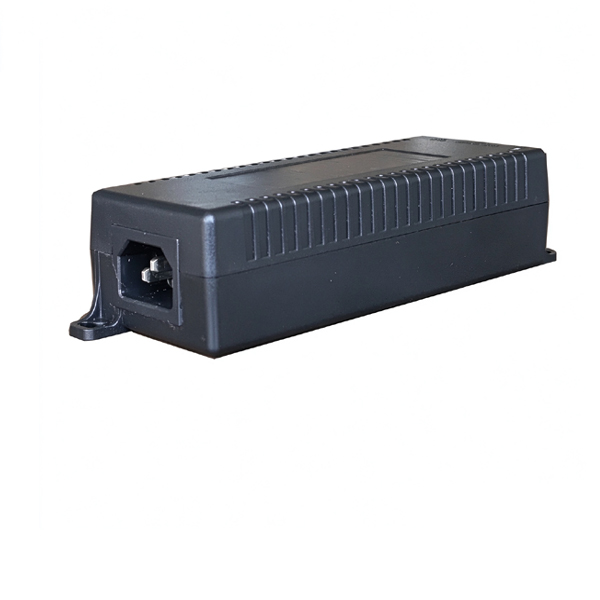

PSE5230-AT-2.5G

2.5G active POE+ injector max 48w

10/100/1000/2500M bps
IEEE 802.3at Power over Ethernet Plus compliant
Supports PoE Power up to 48W for PoE port
Remote power feeding up to 100m

Overview Specification

PSE5230AT

Gigabit Active POE+ injector max 48w

IEEE 802.3at Power over Ethernet Plus compliant
Supports PoE Power up to 48W for PoE port
Remote power feeding up to 100m

Overview Specification

PSE5675G-IDS

DIN Rail industrial 802.3bt POE injector

Remote power feeding up to 100m
Supports PoE Power up to 90W for PoE port
IEEE 802.3bt Power over Ethernet Plus compliant
Backward compatible with IEEE 802.3af/at Power over Ethernet
Circuit protection prevents power interference between ports

Overview Specification

PSE5265T

65w 10G active 802.3bt POE injector

Surge protection
Distance up to 100 meters at 2.5Gbps， max 30meter at 10Gbps.
Supports 10/100/1000，2.5G, 5G, 10G Base-T applications
Auto-detect of POE IEEE 802.3af ,IEEE802.3at/bt equipment
Up to 65W of Power on 4-pairs

Overview Specification

PSE24001G

24V 1A gigabit POE injector

Comply with EN55022, CLASS B / FCC standards.
Lightning protection 3KV
Mini Size plastic housing
24V 1A POE output

Overview Specification

PSE90-TO-LT

AC input 95w outdoor POE injector

Operating Temperature: -40℃ to 65℃
6KV surge protection
IP66 protection
802.3bt 90w output

Overview Specification

PSE90W-OT-10G-V2

12-57Vdc input 10G Outdoor POE injector

6KV surge protection
industrial grade -40℃ to 80℃ working temperature
wide range DC input 12-57V
POE BT 90W
waterproof IP67

Overview Specification

PSE4805E-AF-WT

Wall mounted POE injector

Remote power feeding up to 100m
Supports PoE Power up to 15.4W for PoE port
Compatible with IEEE 802.3af Power over Ethernet
Circuit protection prevents power interference between ports
Circuit Shorting Protection Supported

Overview Specification

PD1250W-GL

60w POE splitter

Isolation design is adopted
10/100/1000Mbps auto adaptive
802.3bt compatible
12V 5A max 60w output
wall mounted metal case

Overview Specification

PD1275W-GL

90W POE splitter

wall mounted metal case
12V 7.5A max 90w output
802.3bt compatible
10/100/1000Mbps auto adaptive
Isolation design is adopted

Overview Specification

PSE301G

Gigabit passive 30w POE injector

Circuit Shorting Protection Supported
Circuit protection prevents power interference between ports
Supports PoE Power up to 30W for PoE port
Remote power feeding up to 100m

Overview Specification

TS0524G-TC

Type-C POE splitter 10/100/1000Mbps 5V 2.4A

Support international standard IEEE802.3 af(13W);
POE port Support 10/100/1000Mbps data transmission
PD support 37V-57V voltage transmission, Automatically detects power supply from
PSE power supply module
5V/2.4A power output using Type-C connector

Overview Specification

TS0524G-MU

Micro USB POE splitter 10/100/1000Mbps 5V 2.4A

Support international standard IEEE802.3 af(13W);
POE port Support 10/100/1000Mbps data transmission
PD support 37V-57V voltage transmission, Automatically detects power supply from
PSE power supply module
5V/2.4A power output using Micro USB connector

Overview Specification

New

PSE90W-GUS

10/100/1000Mbps industrial POE injector 12-57V input

IP40 rated Gigabit 802.3AT/BT/PoE++ Injector
Max 90w POE output
Network a PoE device located up to 100m (328 ft.) away
Extreme -40 to 80 °C operating temperature range
DC inputs with overload current protection

Overview Specification

New

PSE90W-GS

10/100/1000Mbps industrial DC POE injector 37-57V input

IP40 rated Gigabit 802.3AT/BT/PoE++ Injector
Max 90w POE output
Network a PoE device located up to 100m (328 ft.) away
Extreme -40 to 80 °C operating temperature range
DC inputs with overload current protection

Overview Specification
