S5812-8GT-2SE L3 8 Ports 2.5G Switch with 2*10G SFP+-POEPlus - Built Green Networks-30/60/90w industrial DC input POE injector & industrial POE splitter

S5812-8GT-2SE

L3 8 Ports 2.5G Switch with 2*10G SFP+

2.5GE ports are backward compatible with 10M/100M/1000Mbps transmission rates;
10G optical port support standard module 10G/2.5G/1G adaptive
IP dynamic routing protocols support IPv4/IPv6 static routes, dynamic routing protocols support RIPV1/V2, OSPFV2, BGP4, etc.
Support web，Console, Telnet, SSH and other management methods;
Support HTTP/TFTP/FTP file upload and download management.

S5812-8GT-2SE Overview

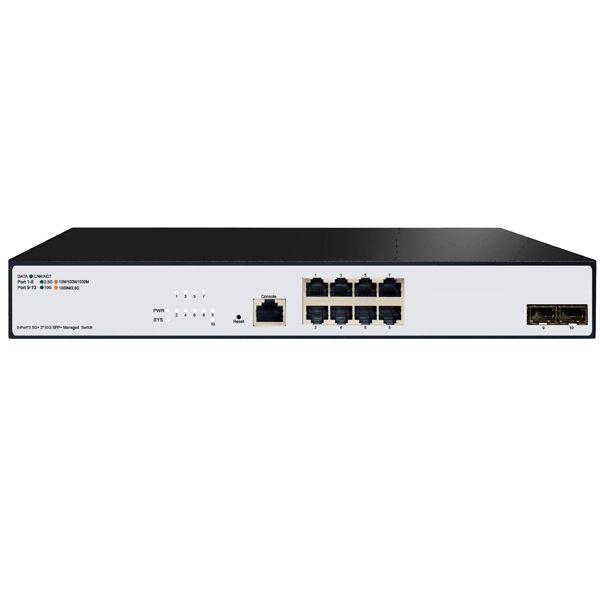

The S5812-8GT-2SE provides 8* 2.5Gbps adaptive RJ45 ports, uplinked to 2* 10Gbps SFP+ fiber module expansion slots and 1* Console port. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. It provides complete security policy, perfect QoS policy and rich VLAN function, which is easy to manage and maintain to meet the networking and access requirements of Enterprise, Community, Hotel, Office Network and Campus Network.

S5812-8GT-2SE Specification

Model	S5812-8GT-2SE
Interface	810M/100M/1000M/2.5Gbps RJ45 Ports 21000M/2.5G/10Gbps SFP+ Slots 1 Console Port
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3ad, IEEE802.3bz, IEEE802.3ae, IEEE802.3an, IEEE802.1X, IEEE802.1Q, IEEE802.1p, IEEE802.1d, IEEE802.1w
Network Media	10BASE-T: UTP category 3,4,5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-TX: UTP category 5e, 6 cable(≤100m) 2.5GBASE-TX: UTP category 6,6A cable(≤100m) 1000BASE-X: MMF, SMF 10GBASE-X: MMF, SMF 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)
Indicator	PWR (Green), LNK/ACT (Green/ Orange), SYS (Green)
MAC Address Table	16K, Auto-learning, Auto-updating
Jumbo Frame	12KByte
Packet Buffer	12Mbit
Transfer Mode	Store-and-forward
Switching Capacity	120Gbps
Packet Forward Speed	89.28Mpps
Power Supply	12V/3A Built-in power supply
Input Power Supply	AC:100-240V, 50/60Hz,2A Max
*Dimensions(LWH)*	33023044mm, Black
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Surge Protection	Differential mode ±2KV ,Common mode ±4KV
Electrostatic Standard	Contact ±6KV, Air ±8KV
MTBF	>100000 hours
