L3 8 Ports 10G TX Switch with 4*10G SFP+-POEPlus - Built Green Networks-30/60/90w industrial DC input POE injector & industrial POE splitter

S5812-8XGT-4SE

L3 8 Ports 10G TX Switch with 4*10G SFP+

Support HTTP/TFTP/FTP file upload and download management.
Support Console, Telnet, SSH and other management methods;
IP dynamic routing protocols support IPv4/IPv6 static routes,
Layer 3 routing protocol control, adapted to multiple services, efficient and secure information transmission;
10G optical port support standard module 10G/2.5G/1G adaptive
10Gbps port is backward compatible with 100M/1000M/2.5G/5G/10Gbps transmission rates;

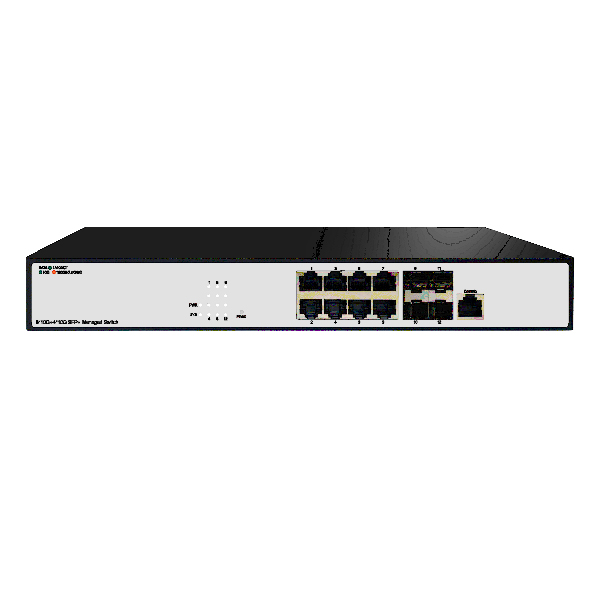

S5812-8XGT-4SE Overview

The S5812-8XGT-4SE is Layer 3 10G Managed Switch, provides 8*100M/1000M/2.5G/5G/10Gbps adaptive RJ45 ports, 4*10Gbps SFP+ fiber module expansion slots and 1*Console Port. The single RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. Provide complete security policy, perfect QoS policy and rich VLAN function, easy to manage and maintain, meet the networking and access requirements of Enterprise, Community, Hotel, Office Network and Campus Network.

S5812-8XGT-4SE Specification

Model		S5812-8XGT-4SE-AC	S5812-8XGT-4SE-DC
Interface		8100M/1000M/2.5G/5G/10Gbps RJ45 Ports 41000M/2.5G/10Gbps SFP+ Slots 1 Console Port
Standard		IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3ad, IEEE802.3bz, IEEE802.3ae, IEEE802.3an, IEEE802.1X, IEEE802.1Q, IEEE802.1p, IEEE802.1d, IEEE802.1w
Network Media		100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-TX: UTP category 5e, 6 cable(≤100m) 2.5GBASE-TX: UTP category 6,6A cable(≤100m) 10GBASE-TX: UTP category6A,7 cable(≤100m) 1000BASE-X: MMF, SMF 10GBASE-X: MMF, SMF 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)
Indicator		PWR (Green), LNK/ACT (Green/ Orange), SYS (Green)
MAC Address Table		32K, Auto-learning, Auto-updating
Jumbo Frame		12KByte
Packet Buffer		16Mbit
Transfer Mode		Store-and-forward
Switching Capacity		240Gbps
Packet Forward Speed		178.56Mpps
Input Voltage	AC	Operating voltage: 100-240V, 50/60Hz, 2A Max Maximum voltage: 90V-240V, 47~63Hz
	DC	Maximum voltage range: 36~72V, 3A Max
Total power supply	AC	12V/5A, 60W
	DC	12V/6.25A, 75W
*Dimensions(LWH)*		33023044mm, Black
Operating Temperature		0°C ~ 40°C
Storage Temperature		-40°C ~ 70°C
Operating Humidity		10% ~ 90% non-condensing
Storage Humidity		5% ~ 90% non-condensing
Surge Protection		Differential mode ±2KV, Common mode ±4KV
Electrostatic Standard		Contact ±6KV, Air ±8KV
MTBF		>100000 hours
