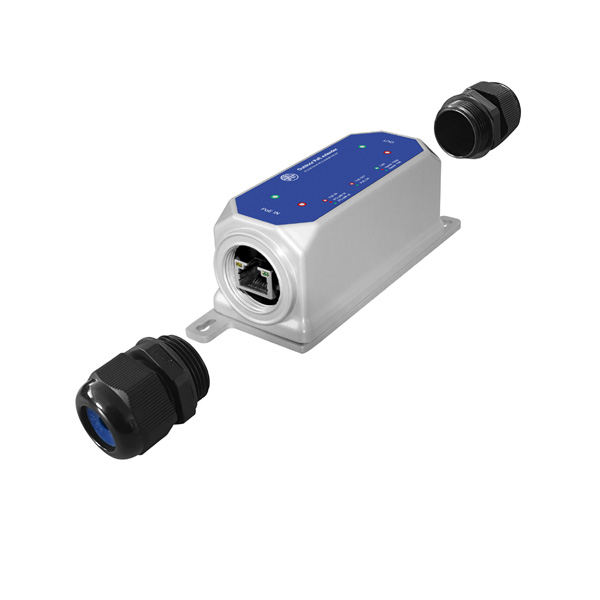

· IP67 Outdoor Waterproof Enclosure: Aluminum die-cast body with nylon waterproof joints, suitable for outdoor installation
· Wide Cable Compatibility: Supports network cable outer diameter Φ4-8 mm
· High-power PoE Support
· PoE Input: IEEE802.3af/at/bt compliant, max 120 W; supports Passive DC37-57V input up to 120 W
· PoE Output: IEEE802.3af/at/bt compliant, max 90 W
· PoE pin assignment: 12+,45+,36-,78- for both PoE-In and PoE-Out
· Long-distance Ethernet Extension (LD mode, requires LD-type transmitter)
· LD mode 10BASE-T: up to 800 m over Cat5 or higher UTP
· LD mode 100BASE-TX: up to 500 m over Cat6 or higher UTP
· Standard mode: 10BASE-T ≤250 m; 100BASE-TX ≤150 m
· Hardware Performance: 1 Gbps bandwidth, 0.75 Mpps packet forwarding rate, 1 K MAC address table, 768 K buffer memory
· Rich LED Indicators: PoE-in status (bt / af/at), PoE-out status, LAN link / speed indicator, internal PoE watchdog LED
· Industrial-grade Environmental Adaptability
· Operating: -40 °C ~ +80 °C, 5%-90% RH, non-condensing
· Storage: -40 °C ~ +90 °C, 5%-95% RH, non-condensing
· Surge Protection: 6 KV 8/20 μs lightning protection
· Flexible Installation: Desktop placement or wall-mount installation
· Certifications: CE-EMC EN55032, CE-LVD EN62368, FCC Part 15 Class B, RoHS
· Warranty: 1-year whole-device warranty (accessories excluded)
Technical Specifications
|
Item |
EXT101EP-LD |
EXT101EP-LDD |
|
Product Name |
Long distance IP67 outdoor waterproof extender（R） |
Dual Long distance IP67 outdoor waterproof extender（T） |
|
Material |
Aluminum die-casting body Nylon waterproof joint |
|
|
Waterproof Grade |
IP67 |
|
|
Wire Diameter |
Support network cables with a Φ of 4-8mm |
|
|
Fixed Port |
1*LD10/100Base-TX in 1*10/100Base-TX out |
1*LD10/100Base-TX in 1*LD10/100Base-TX out |
|
PoE In |
Supports IEEE802.3af/at/bt, max 120W PoE in Supports Passive DC37-57V in MAX 120W |
|
|
PoE In Pin |
12+ 45+ 36- 78- |
|
|
PoE OUT |
Supports IEEE802.3af/at/bt, max 90W PoE out |
|
|
PoE OUT Pin |
12+ 45+ 36- 78- |
|
|
Bandwidth |
1Gbps |
|
|
Packet Forwarding |
0.75Mpps |
|
|
MAC Address Table |
1K |
|
|
Buffer Memory |
768K |
|
|
POE IN Transmission Distance |
10BASE-T：Cat3,4,5 UTP(≤250 meter) 100BASE-TX：Cat5 or later UTP(150 meter) LD type:10BASE-T：Cat5 or later (≤800 meter) 100BASE-TX：Cat6 or later UTP(≤500 meter) |
|
|
POE OUT Transmission Distance |
10BASE-T：Cat3,4,5 UTP(≤250 meter) 100BASE-TX：Cat5 or later UTP(150 meter) |
10BASE-T：Cat3,4,5 UTP(≤250 meter) 100BASE-TX：Cat5 or later UTP(150 meter) LD type: 10BASE-T：Cat5 or later (≤800 meter) 100BASE-TX：Cat6 or later UTP(≤500 meter) |
|
LED Indicator |
PoE in: LED with bt or af/at POE out: on LED Port in: LAN link on LED、LAN SPEED Port out: LAN link on LED PoE watchdog: on led |
|
|
Operating Temperature / Humidity |
-40～+80°C；5%～90% RH Non coagulation |
|
|
Storage Temperature / Humidity |
-40～+90°C；5%～95% RH Non coagulation |
|
|
Product / Packing Size(LWH) |
160*43*43mm 170*49*48mm |
|
|
N.W / G.W (kg) |
0.19kg / 0.22kg |
|
|
Lightning Protection Level |
6KV 8/20us |
|
|
Installation |
Desktop, wall installation |
|
|
Certificates |
CE-EMC EN55032； CE-LVD EN62368； FCC Part 15 Class B；RoHS |
|
|
Warranty |
Whole device for 1 year (Accessories not included) |
|

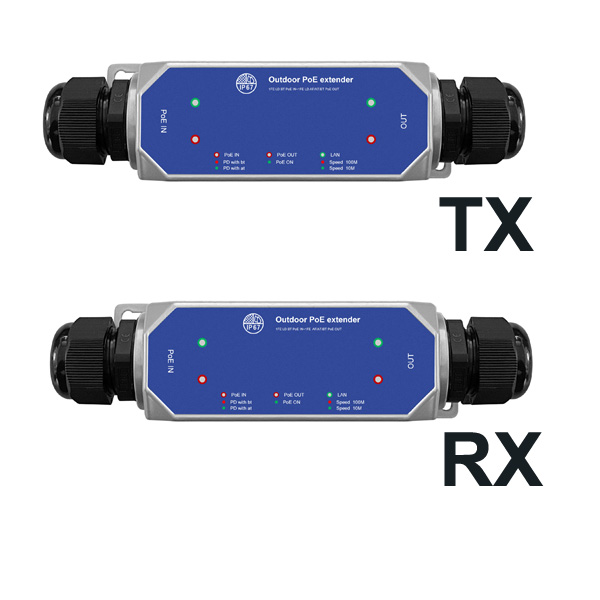

Model Difference Reminder
1.EXT101EP-LD: Port: 1× LD-type 10/100Base-TX IN, 1× standard 10/100Base-TX OUT; long-distance LD transmission only available on PoE-IN side
2.EXT101EP-LDD: Port: 1× LD-type 10/100Base-TX IN, 1× LD-type 10/100Base-TX OUT; LD long-distance transmission supported for both PoE-IN and PoE-OUT directions
