Item

Parameter

Product Model

PE90 Series (PE90A1, PE90A2, PE90B1, PE90B2, PE90C1, PE90C2)

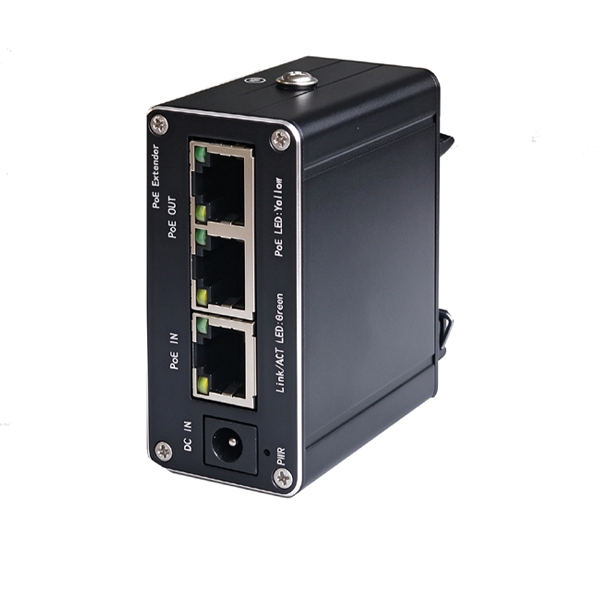

Interfaces

1 × 10/100/1000 Mbps RJ45 PoE IN (IEEE802.3af/at/bt)

2 × 10/100/1000 Mbps RJ45 PoE OUT (IEEE802.3af/at/bt)

1 × DC2.0 / DC5521 I/O port (48-57 V DC)

PoE Standard

IEEE 802.3af / at / bt, Class 8, Max. 90 W

PoE IN Pinout

1-2-4-5 positive, 3-6-7-8 negative; DC input: 48-57 V (PE90A, PE90B)

PoE OUT

DC range: 44-57 V (PE90C, PE90D); RJ45 acts as IEEE802.3af/at/bt PSE; SPoE 12 V 2 A output for PE90 variant

Network Compliance

IEEE802.3 10BASE-TIEEE802.3i 10BASE-TIEEE802.3u 100BASE-TXIEEE802.3x Flow ControlIEEE802.3ab 1000BASE-T

LED Indicators

PWR: Power statusGreen: Link / Data activityYellow: PoE status

Transmission Distance

0-100 m at 10/100/1000 Mbps, using CAT5e / CAT6 cable

Transmission Media

10 Mbps: Cat3 / Cat4 / Cat5 or higher twisted-pair100 Mbps / 1000 Mbps: Cat5 / Cat5e / Cat6 or higher twisted-pair

Operating Temperature

-30 ℃ ~ +65 ℃

Storage Temperature

-40 ℃ ~ +85 ℃

Relative Humidity

5%-95% non-condensing

Cooling

Fan-less, natural convection cooling

MTBF

100 000 hours

Ingress Protection

IP40

EMC / Surge Protection

Power-port surge: IEC 61000-4-5, 4 kV / 2 kV (8/20 μs)LAN-port surge: IEC 61000-4-5, 4 kV / 2 kV (10/700 μs)ESD: IEC 61000-4-2, 8 kV contact / 15 kV air-discharge

Unit Dimensions

70 × 50 × 32 mm

Package Dimensions

120 × 100 × 59 mm

Installation

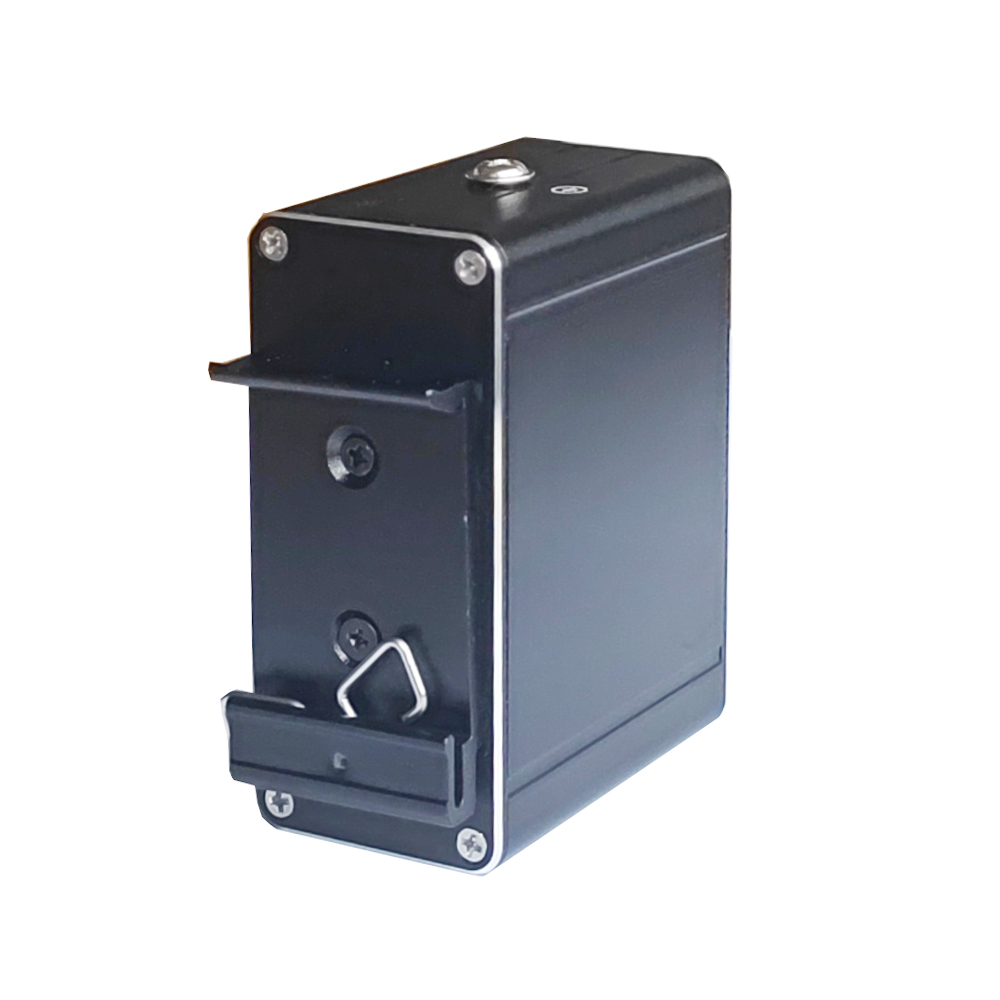

Wall-mount (default), DIN-rail, desktop placement

Net Weight

0.3 kg

Package Contents

Main unit, user manual, DIN-rail clip

Carton Information

80 pcs per carton; carton size 510 × 430 × 320 mm; gross weight 25 kg

Warranty

1-year limited warranty

Model

Description

PE90A1

90 W PoE Extender1×PoE-BT Input(RJ45); 2×PoE af/at Output(RJ45); DC5521 redundant input 48-57 VMax 90 W output; -30~65 ℃ wide temp; DIN-rail / wall / desktop mount

PE90A2

90 W PoE Extender1×PoE-BT Input(RJ45); 2×PoE af/at Output(RJ45); DC5521 output 48-57 VMax 90 W output; -30~65 ℃ wide temp; DIN-rail / wall / desktop mount

PE90B1

90 W PoE Extender1×PoE-BT Input(RJ45); 1×PoE af/at/bt Output(RJ45); 1×12 V 2 A SPoE output(RJ45, pin 1245+,3678-); DC5521 redundant input 48-57 VMax 90 W output; -30~65 ℃ wide temp; DIN-rail / wall / desktop mount

PE90B2

90 W PoE Extender1×PoE-BT Input(RJ45); 1×PoE af/at/bt Output(RJ45); 1×12 V 2 A SPoE output(RJ45, pin 1245+,3678-); DC5521 output 48-57 VMax 90 W output; -30~65 ℃ wide temp; DIN-rail / wall / desktop mount

PE90C1

90 W PoE Extender1×PoE-BT Input(RJ45); 1×PoE af/at/bt Output(RJ45); 1×Gigabit RJ45 data-only port; DC5521 redundant input 48-57 VMax 90 W output; -30~65 ℃ wide temp; DIN-rail / wall / desktop mount

PE90C2

90 W PoE Extender1×PoE-BT Input(RJ45); 1×PoE af/at/bt Output(RJ45); 1×Gigabit RJ45 data-only port; DC5521 output 48-57 VMax 90 W output; -30~65 ℃ wide temp; DIN-rail / wall / desktop mount
