Feature

PoE function

Remote power feeding up to 100m

Supports PoE Power up to 30W for PoE port

IEEE 802.3at Power over Ethernet Plus compliant

Backward compatible with IEEE 802.3af Power over Ethernet

Auto-detection of PoE IEEE 802.3at/af devices from being damaged by incorrect installation

Circuit protection prevents power interference between ports

Circuit Shorting Protection Supported

Energy conservation, and low radiation

The POE Injectors uses an energy-saving integrated circuit design to ensure even heat dissipation. Idle ports can enter a sleep mode to further reduce power consumption. Radiation produced by the POE Injectors is within the standard range for electric appliances and causes no harm to the human body.

Easy deployment and maintenance free

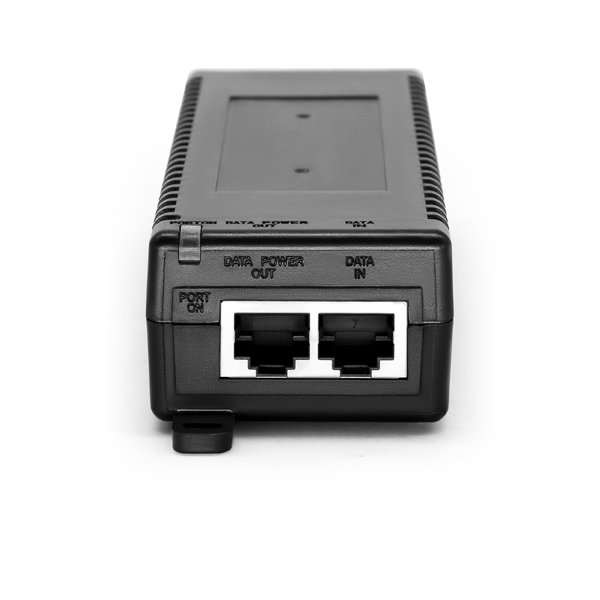

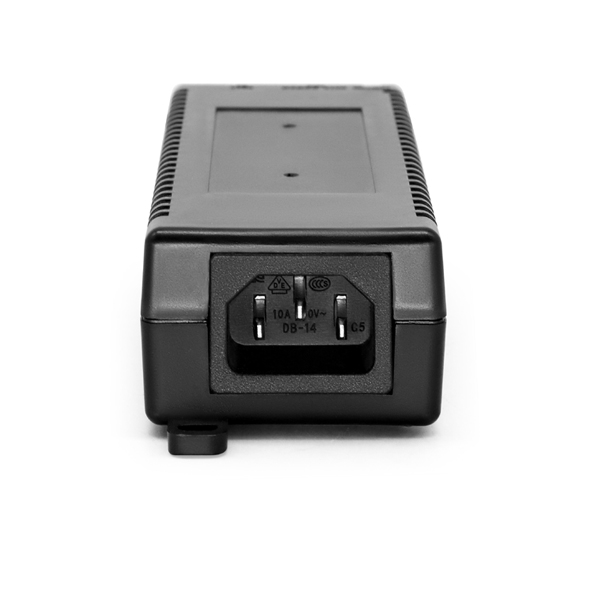

With concepts of "Easy to install", "Plug and Play" and "Simple troubleshooting" for business and home users, the POE Injectors is an all-in-one designed single-port PoE injector with internal power supply. In the compact size housing, the POE Injectors provides one 110-240V AC input socket on its front panel and two RJ-45 ports (POE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE Injectors is ready to provide high speed network communication and high power PoE injector functions simultaneously with no need of software configuration. The POE Injectors frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.

Specification
