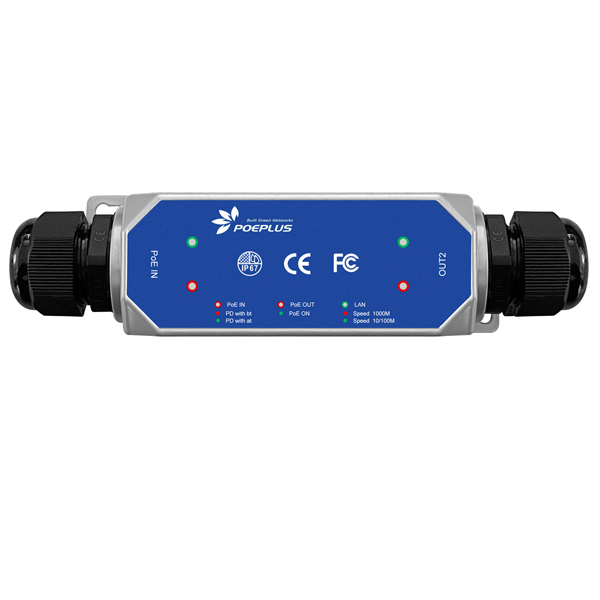

Model

EXT101GP-OT

Product name

Gigabit IP67 outdoor waterproof extender

material

Aluminum die-casting body

Nylon waterproof joint

Waterproof grade

IP67

Wire diameter

Support network cables with diameter Φ of 4-8mm

Fixed Port

1*10/100/1000Base-TX in

1*10/100/1000Base-TX out

PoE in

Supports IEEE802.3af/at/bt, max 120W PoE in

Supports Passive DC37-57V in MAX 120W

PoE in Pin

12+ 45+； 36- 78-

PoE OUT

Supports IEEE802.3af/at/bt, max 90W PoE out

PoE OUT Pin

12+ 45+； 36- 78-

PoE watchDog

PoE auto execution、detection and resets when PoE watchdog is on

Bandwidth

4Gbps

Packet Forwarding

2.88Mpps

MAC

2K

Buffer

2.5M

POE in Transmission Distance

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(100 meter)

POE out Transmission Distance

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(100 meter)

LED Indicator

PoE in: LED witch bt or af/at

POE out:  on LED

Port: LAN link onLED、LAN SPEED 1G LED

PoE watchdog: on led(inbox)

Operating Temperature/Humidity

-40～+80°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+90°C；5%～95% RH Non coagulation

Product /Packing size

160*43*43mm

170*49*48mm （L*W*H）

N.W/G.W（kg）

0.19kg/0.22kg

Lightning Protection level

6KV 8/20us；

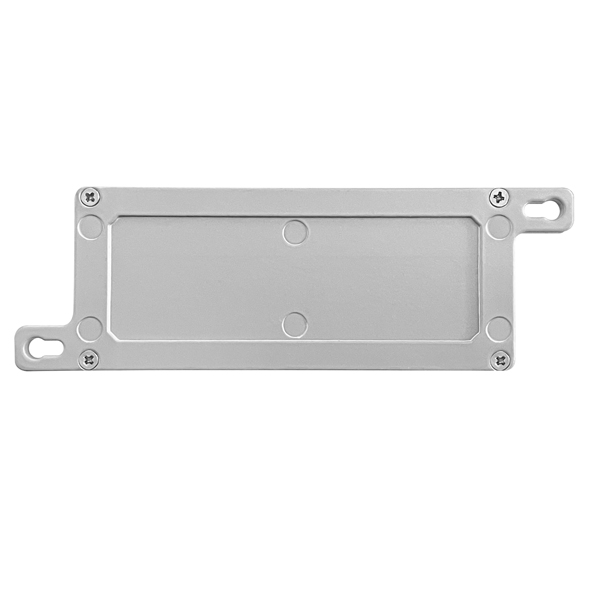

Installation

Desktop、wall installation

Certificate

CE-EMC EN55032；CE-LVD EN62368；
FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year (Accessories not included)
