Specifications
|
Model |

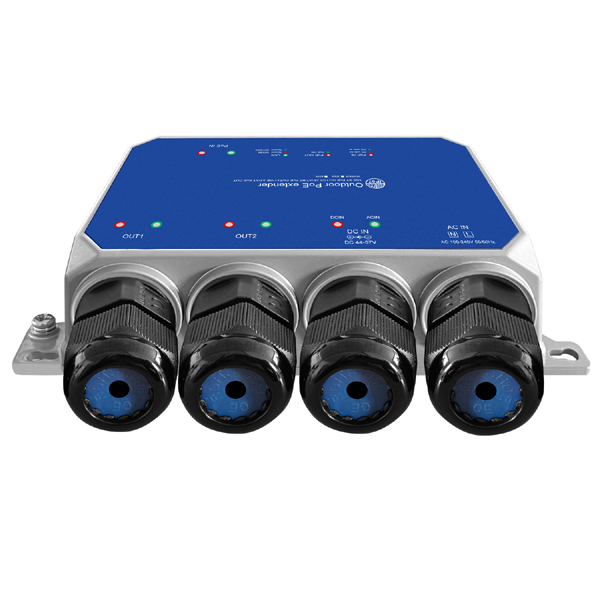

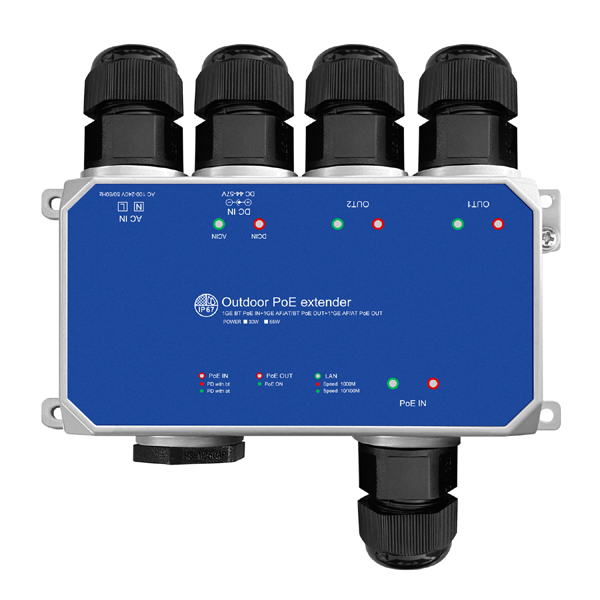

EXT102GP-AC |
|
Product name |
Gigabit IP67 AC outdoor waterproof extender/Switch |
|
material |
Aluminum diecasting body Nylon waterproof joint |
|
Waterproof grade |
IP67 |
|
Wire diameter |
Support network cables with a Φ of 48mm |
|
Power Input |
1*AC: 2P*3.5mm terminal AC 90~265V 50/60Hz MAX 0.8A ,MAX65W（Optional 30W TYPE） 1*DC: DC 4457V MAX 65W |
|
Fixed Port |
1*10/100/1000BaseTX in 2*10/100/1000BaseTX out |
|
PoE in |
Supports IEEE802.3af/at/bt, max 120W PoE in Supports Passive DC3757V in MAX 120W |
|
PoE in Pin |
12+ 45+ 36 78 |
|
PoE OUT |
OUT1 Supports IEEE802.3af/at/bt, max 90W PoE out OUT2 Supports IEEE802.3af/at, max 30W PoE out |
|
PoE OUT Pin |
Bt:12+ 45+ / 36- 78- Af/at: 12+ / 36 - |
|
PoE Dog |
PoE auto execution、detection and resets fault device when PoE is on |
|
Bandwidth |
4Gbps |
|
Packet Forwarding |
2.88Mpps |
|
MAC |
2K |
|
Buffer |
2.5M |
|
POE in Transmission Distance |
10BASET ： Cat3,4,5 UTP (≤250 meter) 100BASETX ： Cat5 or later UTP (150 meter) 1000BASETX ： Cat6 or later UTP (100 meter) |
|
POE out Transmission Distance |
10BASET ： Cat3,4,5 UTP (≤250 meter) 100BASETX ： Cat5 or later UTP (150 meter) 1000BASETX ： Cat6 or later UTP (100 meter) |
|
LED Indicator |
PoE in: LED witch bt or af/at POE out: on LED Port: LAN link on LED、LAN SPEED 1G LED PoE watchdog: on led(inbox) AC input LED DC input LED |
|
Operating Temperature/Humidity |
40～+80°C；5%～90% RH Non coagulation |
|
Storage Temperature/Humidity |
40～+90°C；5%～95% RH Non coagulation |
|
Product /Packing size（L*W*H） |
177*145*43mm 190*150*47mm |
|
N.W/G.W（kg） |
0.59kg/0.67kg |
|
Lightning Protection level |
6KV 8/20us； |
|
Installation |
Desktop、wall installation |
|
Certificate |
CE EMC EN55032；CELVD EN62368； |
|
Warranty |
Whole device for 1 year(Accessories not included) |
