G06P4G2S-BT

4Ports 802.3bt industrial Switch

4 Ports 802.3bt 90w POE output
Power Supply: Dual DC input, DC 36~56 V, max 6 A, supports power redundancy.
Protection Performance: 6 KV (8/20μs) lightning surge protection, 8 KV ESD electrostatic protection,
Full Wire Speed Switching
Intelligent PoE Watchdog

G06P4G2S-BT Overview

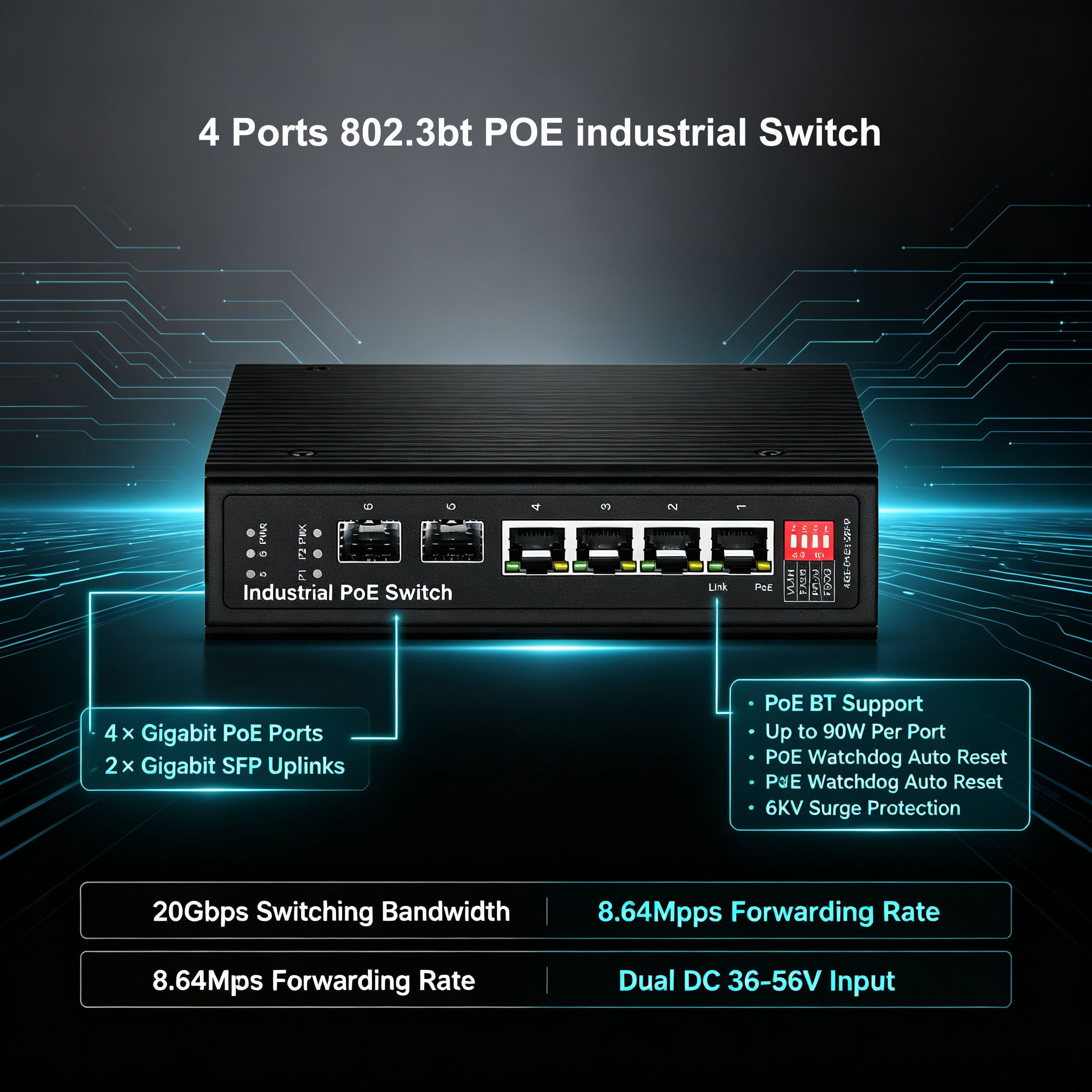

The G06P4G2S BT is an industrial grade full Gigabit PoE switch, featuring 4 Gigabit PoE downlink ports and 2 Gigabit SFP uplink fiber slots. Compliant with IEEE 802.3af/at/PoE++/BT standards, each PoE port can deliver up to 90 W maximum output power. Built for harsh industrial environments, this unit supports wide range dual DC power input, a broad operating temperature range from 40°C to +80°C, 6 KV surge lightning protection, 8 KV ESD protection and IP40 metal enclosure. It adopts store and forward full wire speed switching architecture. The embedded PoE Watchdog function activates automatically once PoE is enabled, detecting abnormal powered devices and performing auto reset to restore offline equipment. Supporting comprehensive industrial Ethernet protocols, the switch supports DIN rail mounting with optional wall mount accessories. It is widely deployed for IP cameras, wireless APs and industrial PoE enabled terminals in scenarios such as security surveillance, smart transportation, factory automation and outdoor industrial networking.

G06P4G2S-BT Specification

Hardware Features

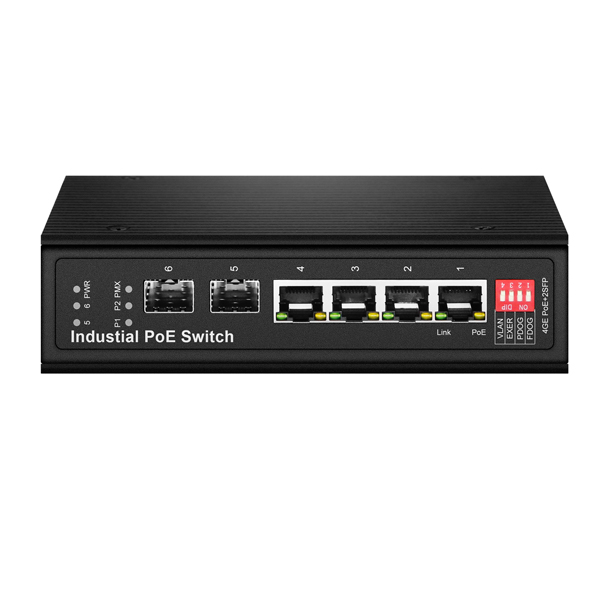

Port Configuration: 4×10/100/1000M PoE RJ45 ports (Port 1‑4), 2×1000M SFP fiber uplink slots. PoE ports support IEEE802.3af/at/PoE++/BT, single‑port maximum power output up to 90 W.
Power Supply: Dual DC input, DC 36~56 V, max 6 A, supports power redundancy.
Environmental Adaptability: Operating temperature: ‑40°C ~ +80°C; Storage temperature: ‑40°C ~ +85°C. Operating humidity: 10%‑90% RH, non‑condensing; Storage humidity: 5%‑95% RH, non‑condensing.
Protection Performance: 6 KV (8/20μs) lightning surge protection, 8 KV ESD electrostatic protection, IP40 rated metal housing.

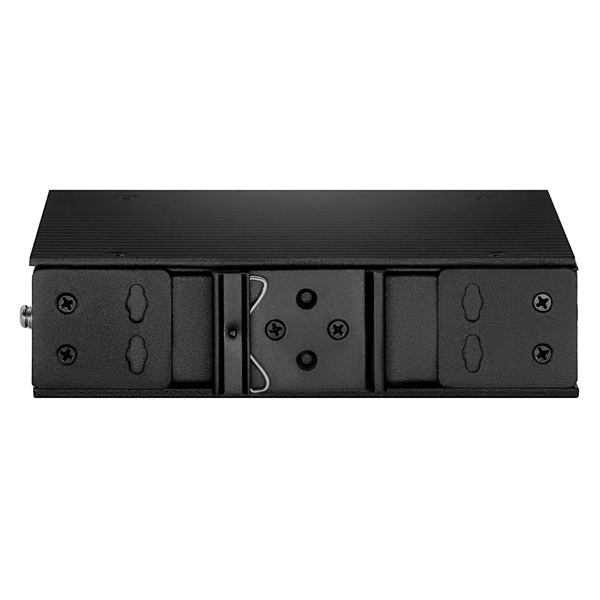

Installation: Standard DIN‑rail mounting; wall‑mount brackets available as optional accessory.
Mechanical Specification: Dimension: 157×115×75 mm; Net weight: 1.3 kg; Gross weight: 1.65 kg.

Performance & Software Features

Full Wire‑Speed Switching: Store‑and‑forward transmission mode. Switching bandwidth: 20 Gbps; Packet forwarding rate: 8.64 Mpps; MAC address table: 4 K; Memory buffer: 1.5 M.
Intelligent PoE Watchdog: Auto‑activated when PoE function is enabled. Automatically detects faulty powered devices and triggers auto‑reset for device recovery.
Supported Network Protocols
- Ethernet: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x Flow Control
- Link Aggregation: IEEE 802.3ad
- VLAN & QoS: IEEE 802.1Q, IEEE 802.1Q/p
- Spanning Tree: IEEE 802.1D, IEEE 802.1w, IEEE 802.1S
- PoE Standard: IEEE802.3af/at/PoE++/BT
RJ45 Auto‑negotiation: Auto speed negotiation, AUTO‑MDI/MDI‑X auto crossover detection.
Transmission Distance
- Copper cable: 10BASE‑T ≤250 m; 100BASE‑TX ≤100 m; 1000BASE‑T ≤1000 m
- SFP Fiber: 1000BASE‑SX up to 550 m; 1000BASE‑LX up to 550 m over MMF / 5000 m over SMF; BIDI SFP module supported.
Power Consumption: Standby power ≤5 W; Full‑load power ≤200 W.

Others

Warranty: 1‑year warranty for main unit (accessories excluded).

Technical Specifications Table

Item	Parameter
Model	G06P4G2S‑BT
Downlink Port	4×10/100/1000M POE Port1‑4 support IEEE802.3af/at/POE++/BT (Single port max power 90W)
Uplink Port	2×1000M SFP
Power Input	2×DC in, DC36~56V, MAX 6A
AI Function	PoE watchdog auto‑execution when PoE is on; auto detection and fault device resetting
Transmission Mode	Store and Forward (full wire‑speed)
Bandwidth	20Gbps
Packet Forwarding Rate	8.64Mpps
MAC Address Table	4K
Buffer	1.5M
Standby Power Consumption	≤5W
Full‑load Power Consumption	≤200W
Operating Temperature / Humidity	-40～+80°C；10%～90% RH Non‑condensation
Storage Temperature / Humidity	-40～+85°C；5%～95% RH Non‑condensation
Lightning & ESD Protection	6KV 8/20us surge; 8KV ESD
Enclosure Protection	IP40
Dimension(LWH)	15711575mm
Package Size	310210100mm
N.W / G.W	1.3kg / 1.65kg
Installation	DIN rail type, wall hangers optional
Warranty	Whole device for 1 year (Accessories not included)
