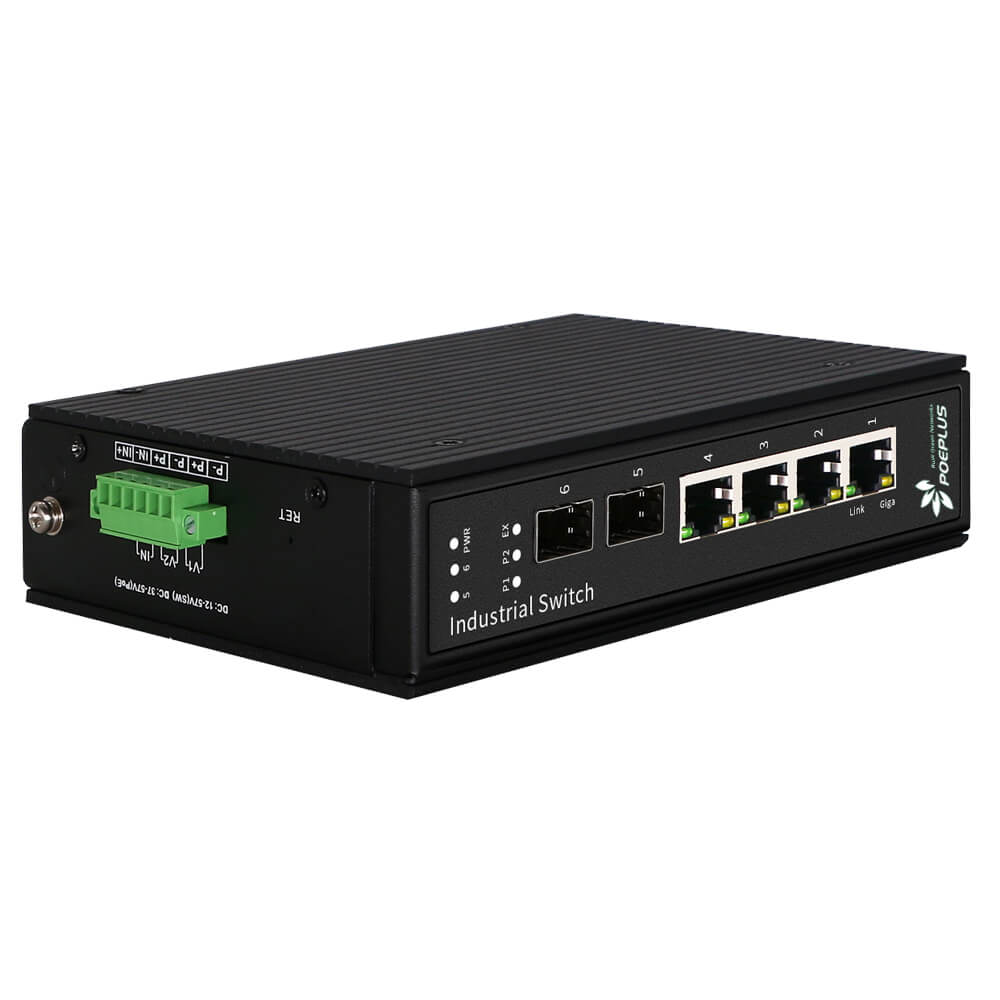

Model

G06U4G2ST

Downlink Port

4*10/100/1000M RJ45

Uplink Port

2*2.5G SFP

Power IN

2* DC in   DC12~56V

Network protocol

IEEE 802.3x

IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z

IEEE 802.3ad

IEEE 802.3q 、IEEE 802.3q/p

IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S

IEEE 802.3z 1000BASE-X

Port Specification

1-4 port 10/100/1000BaseT（X）auto detection，AUTO-MDI/MDI-X

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

20Gbps

Packet Forwarding

35.71Mpps

MAC

2K

Buffer

2.5M

Transmission Distance

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(≤100 meter)

1000BASE-TX ： Cat6 or later UTP(≤1000 meter)

1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

BIDI supported

Watt

Standby power consumption≤5W;

Operating Temperature/Humidity

-40～+80°C；10%～90% RH No coagulation

Storage Temperature/Humidity

-40～+85°C；5%～95% RH No coagulation

Lightning Protection Level

6KV 8/20us；8KV ESD

IP40

Product Size/Packing Size（L*W*H）

156mm*113mm*40mm

235mm*165mm*78mm

N.W/G.W(kg)

1.3/1.65kg

Installation

DIN guide rail type(additional wall hangers)

Warranty

Whole device for 1 year(Accessories not included)
