Model

PD90W-GL-OT

Product name

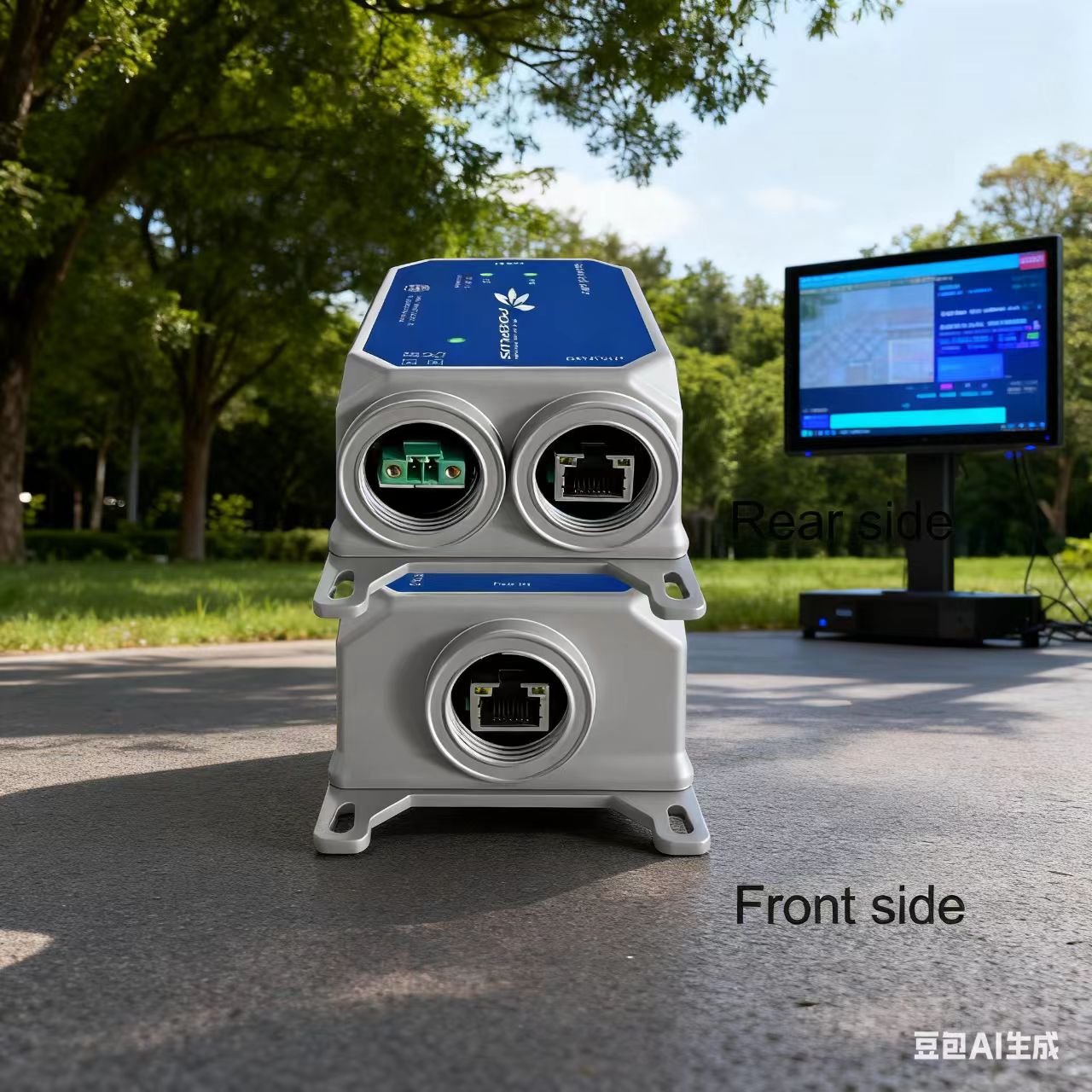

IP67 BT level outdoor waterproof POE Splitter

material

Aluminum die-casting body

Nylon waterproof joint

Waterproof grade

IP67

Wire diameter

Support network cables with a  Φ of 4-8mm

Fixed Port

1*10/100/1000/2500BASE-TX in

1*10/100/1000/2500BASE-TX out

PoE in

Supports IEEE802.3af/at/bt, max 90W PoE in

Supports Passive DC37-57V MAX 120W in

PoE in Pin

12+ 45+ 36- 78-

DCDC type

1.5KV isolation type

Output voltage

DC 12V

Output current

MAX 7.5A

POWER

MAX 90W

Ripple wave

≤120 mv

Conversion efficiency

93-94.5%

Power out

2P * 3.81 terminal input

POE in

Transmission Distance

10BASE-T ： Cat3,4,5 UTP(≤200 meter)

100BASE-TX ： Cat5 or later UTP(120 meter)

1000BASE-TX ： Cat6 or later UTP(100 meter)

2500BASE-TX ： Cat6 or later UTP(90 meter)

LED Indicator

Power: Power in LED、Power out LED

POE out:  on of af/at LED、on off bt LED

Operating Temperature/Humidity

-40～+80°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+90°C；5%～95% RH Non coagulation

Product /Packing

 size（L*W*H）

150*77*43mm

160*85*47mm

N.W/G.W（kg）

0.31kg/0.35kg

Lightning

Protection  level

6KV 8/20us；

Installation

Desktop、wall installation

Certificate

CE-EMC EN55032；CE-LVD EN62368；
FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year(Accessories not included)
