Designed for outdoor harsh environments with high requirements for waterproofing, stability, and long-distance power supply, the product is widely applicable to the following scenarios:
Specification
|
Model |

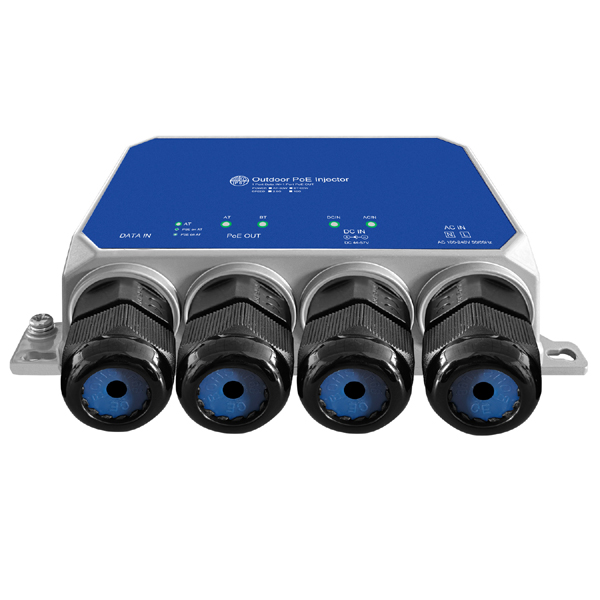

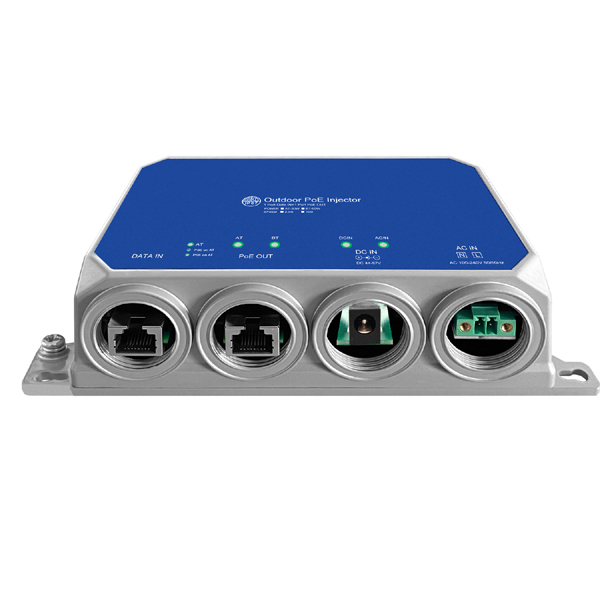

PSE60W-AC-OT |
PSE30W-AC-OT |
|
Product name |
Gigabit IP67 AC outdoor waterproof PSE injector |
|
|
Material |
Aluminum die-casting body Nylon waterproof joint |
|
|
Waterproof grade |
IP67 |
|
|
Wire diameter |
Support network cables with a Φ of 4-8mm |
|
|
Power Input |
1*AC: 2P*3.5mm terminal AC 90~265V 50/60Hz 1*DC: DC 44-57V MAX 65W |
|
|
AC Power |
MAX 0.8A 65W |
MAX 1.5A 35W |
|
Fixed Port |
1*10/100/1000Base-TX Data in 1*10/100/1000Base-TX PoE out |
|
|
PoE OUT |
Supports IEEE802.3af/at/bt, max 60W PoE out |
Supports IEEE802.3af/at, max 30W PoE out |
|
PoE OUT Pin |
Bt:12+ 45+ 36- 78- Af/at: 12+ 36- |
|
|
POE transmission medium |
10BASE-T : Cat3,4,5 UTP (≤250 meter) 100BASE-TX : Cat5 or later UTP (150 meter) 1000BASE-TX : Cat6 or later UTP (100 meter) |
|
|
LED Indicator |
Af/at: Port af/at PoE out ON Bt: Port Bt PoE out ON AC input LED DC input LED |
|
|
Operating Temperature/Humidity |
-40~+80°C;5%~90% RH Non-condensing |
|
|
Storage Temperature/Humidity |
-40~+90°C;5%~95% RH Non-condensing |
|
|
Product /Packing size |
177*145*43mm 190*150*47mm (L*W*H) |
|
|
N.W/G.W(kg) |
0.56kg/0.63kg |
0.53kg/0.6kg |
|
Lightning Protection level |
6KV 8/20us; |
|
|
Installation |
Desktop、wall installation |
|
|
Certificate |
CE-EMC EN55032;CE-LVD EN62368; |
|
|
Warranty |
Whole device for 1 year (Accessories not included) |
|
