18SFP+8RJ45 L2 managed Ethernet fiber Switch

  • Rich software features

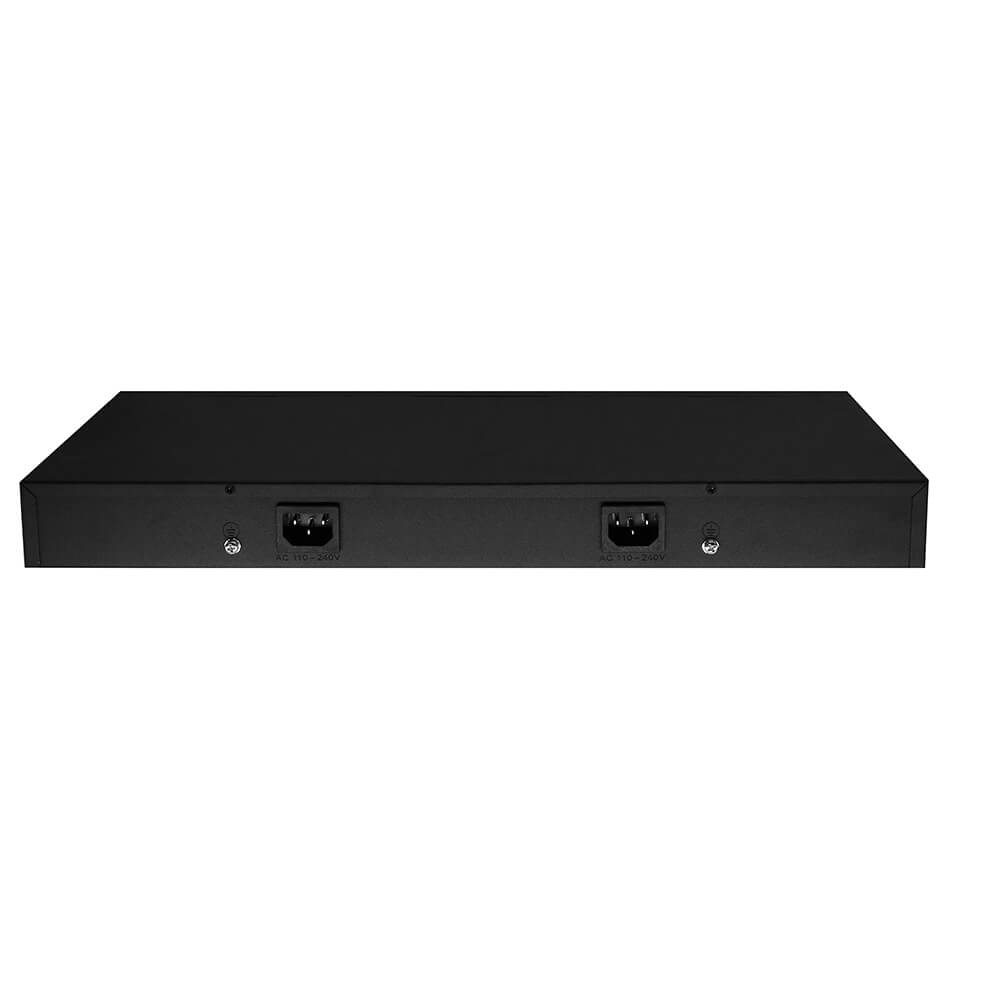

  • Dual power input AC+AC
  • 8*10/100/1000M RJ45 ports
  • 18*100/1000M SFP fiber ports

Thanks a lot for your inquiry and we will handle it as early as possible.

S3018S-8G   Overview

S3018S-8G is a L2 managed fiber Switch which provides 18*100/1000M SFP and 8*10/100/1000Mbps RJ45 ports. As a high-performance Ethernet switch, it can be used as a core switch or aggregation layer switch on small networks. Built-in dual AC power supply, it is more stable for project application.

Advanced watchdog Technology

System integration against false halt system, when the system resources exhausted or the system suspended tasks and other unexpected circumstances, the system will automatically restart, to ensure reliable operation of the network.

Secure network management and maintenance

CLI command line (Console, Telnet), Web network, SNMP (V1/V2c/V3, SSH (V1/V2) and other management methods, to achieve fast and convenient network management; support user identity classification, filtering and other functions, enhanced security configuration; support port data monitoring, real-time monitoring of network status, to easily achieve the global unified management of the network, convenient flexible.

Reliability design

STP/RSTP/MSTP two layer link protection technology, greatly improve the ability of fault tolerance, redundancy link, to ensure stable operation of the network; provide static convergence and dynamic aggregation of two kinds of convergence pattern, effectively increase the link bandwidth, improve link reliability, while achieving load balancing, link backup; support multicast management, through the IGMP Snooping technology, effective inhibition of multicast overload caused by network congestion.

Multilevel access control policy

Powerful hardware ACL capacity, support L2~L4 data stream classification; easy network monitoring, traffic regulation, priority weight markers and data forwarding control; support time based ACL control, easy to realize the time accurate access control needs; support port and MAC 802.1x based authentication based on user access, easy setup.

Rich QoS strategy

3 priority modes based on port, IEEE802.1p and DSCP to guarantee the priority processing of key business data; support traffic control function, and can reasonably allocate bandwidth.

Powerful VLAN capabilities

IEEE, 802.1Q, VLAN, meet the needs of different users, make the network more convenient, efficient and safe.

Comprehensive safety protection system

Simple operation, simplifying the management of network; combination of ARP attack protection function, completely solve the network ARP spoofing attacks; support port security, can limit the number of port MAC address, MAC address effective defense attack; support DoS attack protection, effectively guarantee the network security.

Full Gigabit access

Provides 18 100/1000M SFP and 8*10/100/1000M RJ45port, all the ports have the line speed forwarding capacity, fully protect user investment, convenient and flexible.

S3018S-8G   Specification

Managed Fiber Switch Hardware Specification

Model

S3024S-2G

S3018S-8G

S3010S-16G

S3010G-8G

S3009S-2G

Port

2*10/100/1000M

8*10/100/1000M

16*10/100/1000M

8*10/100/1000M

2*10/100/1000M

24*100/1000M SFP

18*100/1000M SFP

10*100/1000M SFP

10*100/1000M SFP

9*100/1000M SFP

Management port

1*Console

Reset

1*reset

bandwidth

56Gbpss/128G

56Gbpss/128G

56Gbpss/128G

56Gbpss/128G

56Gbpss/128G

Packet forwarding

40.32Mpps

40.32Mpps

40.32Mpps

40.32Mpps

40.32Mpps

CPU

500MHZ

RAM

128M

MAC

8K

FLASH

16M

transmission

Store and forward

working temperature

0ºC~50ºC

Storage temperature

-40ºC~70ºC

Operating humidity

10%~90% Non coagulation

Storage humidity

5%~95% Non coagulation

Product size

440*210*45mm

440*200*45mm

440*200*45mm

440*200*45mm

225*105*35mm

Packing size

515*300*95mm

515*300*95mm

515*300*95mm

305*208*55mm

Weight

2.4/3.1

2.3/3

2.2/2.9

0.7/1

Power in

AC 100~240V 50~60Hz

Power

≤35W

≤35W

≤20W

≤15W

WEB software function  (Acceptance of Customization Function Development)

standards

IEEE 802.3x

IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z

IEEE 802.3ad

IEEE 802.3q ,IEEE 802.3q/p

IEEE 802.1w,IEEE 802.1d ,EEE 802.1S

MAC Address

8K MAC addresses ;MAC address learning and aging

VLAN

Support port based VLAN

Up to 4096 VLAN

Voice VLAN ,can configure QoS for voice data

4k VLANS;Port-based VLANs;802.1Q VLAN

Spanning Tree

STP(Spanning Tree Protocol)

RSTP/MSTP( Rapid Spanning Tree Protocol)

EPPS ring network protocol

EAPS ring network protocol

802.1x argumentation agreement

Link Aggregation

Max 8 aggregation groups TRUNK, each supports 8 ports

Static aggregation and dynamic aggregation

Port Mirror

Many-to-one port mirroring

Loop Guard

Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery

isolation

Support downlink ports isolated from each other and communicate with upstream port

Port flow control

Half duplex based back pressure control

Full duplex based on PAUSE frames

line rate

Support port based input / output bandwidth management

IP binding

Support static ARP

Static routing

Support static routing

IGMP Snooping

Support 256 layers of set table capacity

IGMPv1/2/3MLDv1/2 Snooping

GMRP protocol registration

Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses

DHCP

DHCP Snoping

Storm suppression

Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type

Storm suppression based on bandwidth tuning and storm filtering

Security

Support 256 groups of ACL

Teams that support 4 different priorities per port

User port+IP address+MAC

ACL based on IP and MAC

Security properties of port based MAC address quantities

Support system CPU self protection

QOS

802.1p port queue priority algorithm

Teams that support 4 different priorities per port

Cos/Tos,QOS sign

WRR (Weighted Round Robin),Weighted priority rotation algorithm

WRR,SP,WFQ,3 priority scheduling models

Support based on port, MAC, 802.1Q, DSCP classification

Port

Auto-MDIX ; Auto negotiation

system maintenance

Upgrade package upload

system log view

Support to upload / download configuration files through WEB

Support multiuser management

WEB restore factory configuration

Management and maintenance

WEB NMS

CLI Telnet, TFTIP Console, management based on

Remote configuration and maintenance using Telnet

SNMP V1/V2/V3;SSH V1/V2;RMON V1/V1
