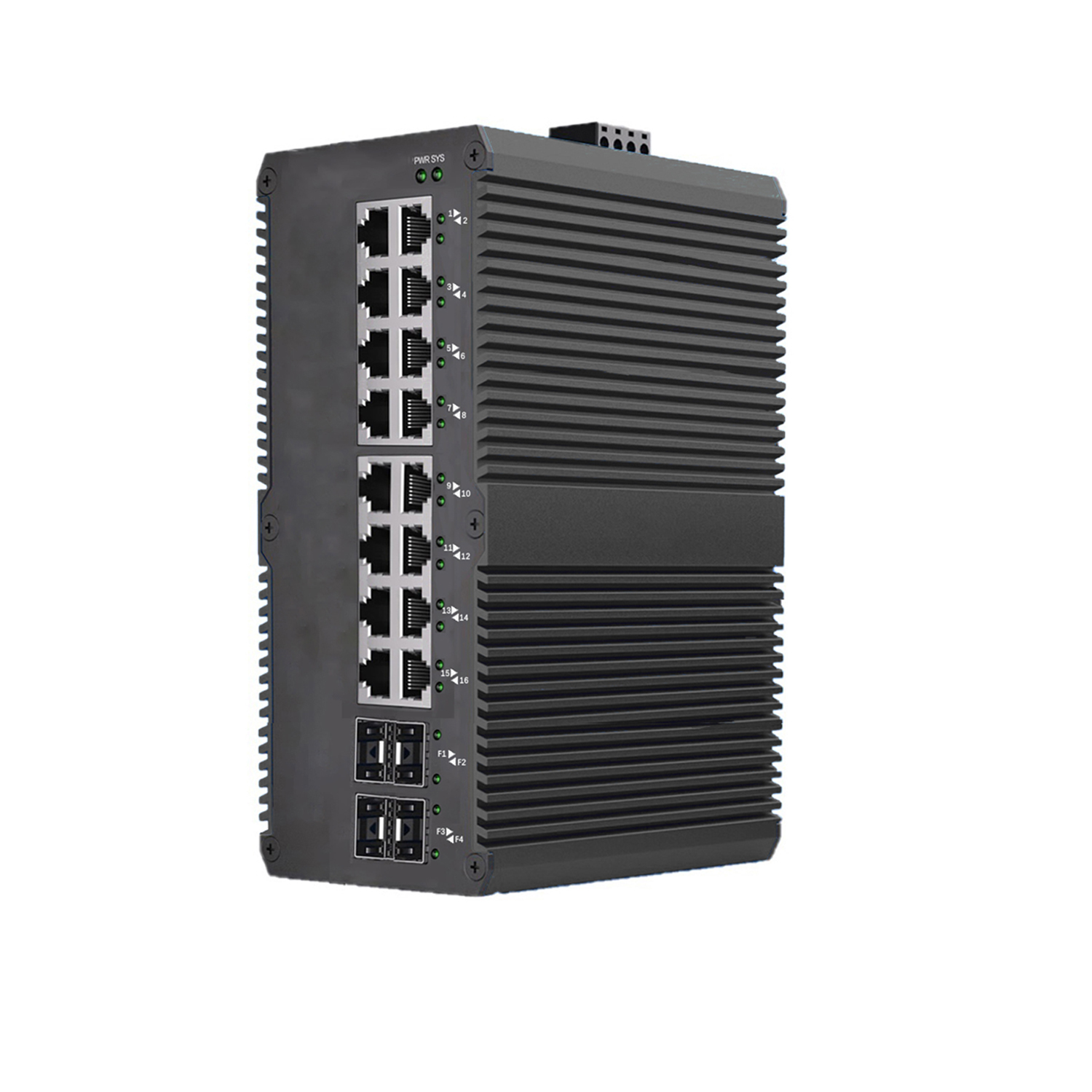

S3120P-IDC Overview

S3120P-IDC is a managed L2 industrial Ethernet switch providing 16 electrical and 4 optical gigabit Ethernet ports. The 16 electrical ports support POE and provide maximum 30W/port output. It supports abundant L2 features such as VLAN, STP/RSTP/MSTP, QoS, ACL, and supports Web/CLI management and third-party SNMP management. All models are with IP40 protection class and meet EMC industrial level 4 requirements. The product supports wide power input voltage range of 48-56VDC and wide operating temperature range of -40 to the +85°C. In addition to its compact size for space-saving installation, each product has passed a 100% burn-in test in 85°C to ensure its quality high-reliability transmission.

S3120P-IDC Specification

Specification

Standard
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-Tx
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-X

Interface
Console Ports: 1 RS-232(RJ45)
Optical Ports: 4 1000Base-X (SFP)
Electrical Ports: 16 10/100/1000/Base-T (RJ45, POE)

LED indicator
Power LED: PWR
Interface LED: RJ45(Link&ACT), Fiber(Link&ACT)

Power
Power Terminal: 4-pin 3.81mm-spacing plug-in terminal block
Full load power consumption: < 17W (POE:<480W)
Overload Protection: Support
Reverse Connection Protection: Support
Redundancy Protection: Support

PoE Function
IEEE 802.3.af : 15.4W per port
IEEE 802.3.at: 30W per port

Physical Characteristics
Housing: Metal, fanless
Protection Class: IP40
Dimensions : 89mm x 165mm x 159.5mm(W×H×D)
Weight: 1.55kg
Mounting: DIN-Rail

Switch Properties

•MAC Table: 8K

•Switching Capacity: 40Gbps

•Packet Forwarding Capacity: 29.76Mpps

•VLAN: 4K

•VLAN Mode: Acess/Trunk/Hybrid

•802.1Q/port/protocol/MAC/IP subnet based VLAN;

•IGMP snooping v1/v2/v3, Multicast VLAN;

•DHCP client, DHCP snooping

•LACP for port bandwdith extension, load balance;

•STP/RSTP/MSTP for ring protection;

•Loopback detection and loopback test;

•8-queue QoS with SP/WRR scheduling policy;

•Rate limitation and traffic shapping;

•DLF/multicast/broadcast limitation;

•MAC/VLAN/IP/TCP/UDP port/ToS based ACL

•Dynamic MAC learning and static MAC configuration;

•MAC addresss learning enable/disable per port;

•MAC limitation per port;

•801.2x, RADIUS, TACACS+

•HTTPS, SSH;

•ip source guard

•port security

•Dynamic ARP inspection

•Port mirror;

•RMON group 1, 2, 3, 9;

•SNMP v1/v2c/v3;

•NTP and secured NTP

•Syslog

•ping and ping6

•WEB and CLI online upgrade;

•Configuration backup and restore;

•CONSOLE and telnet for CLI management;

•WEB management;

Industrial Standard
EMI:
FCC CFR47 Part 15, EN55022/CISPR22, Class A
EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Machinery
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)

Approvals
CE, FCC, RoHS

MTBF
360,000 hrs

Warranty
3 years

Environmental Limits
Operating Temperature: -40 to 85°C
Storage Temperature: -45 to 85°C
Ambient Relative Humidity: 5 to 95% (non-condensing)
