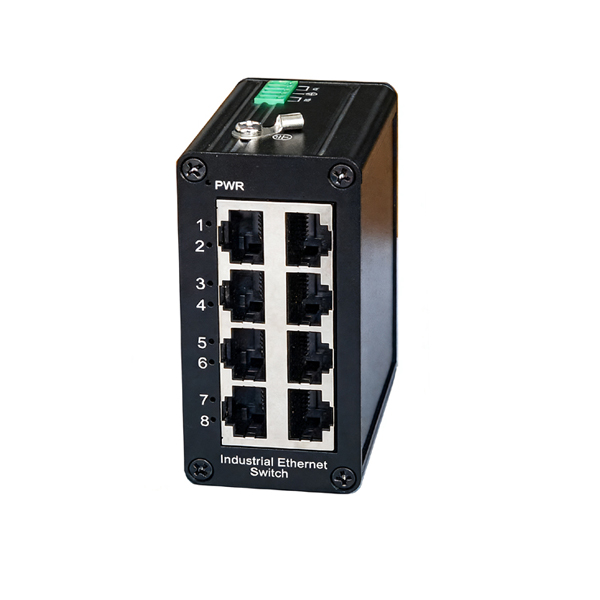

TS3000-38EG-ADC-MINI

AC+DC input MINI 8-Port Gigabit Ethernet Industrial Switch

• Integrated PoE design for flexible adaptation to diverse application scenarios;
• Overcurrent, overvoltage, and EMC protection for RJ45/power input terminals;
• Power supply: Non-PoE version: DC 9-60V; PoE version: DC 47-58V, with reverse polarity protection;
• Supports AC+DC dual power input redundancy;
• Lightning surge protection (power supply): 5000A (8/20μs);
• DIN rail mounting with Phoenix terminal power input;

TS3000-38EG-ADC-MINI Overview

This series of switch products is equipped with 8 gigabit electrical ports and optionally supports IEEE802.3af/at standard PoE functionality. Compliant with FCC, CE, and RoHS standards, it operates within a temperature range of -40℃ to 75℃. Featuring high-reliability components and a robust hardware design, it can adapt to various harsh environments and be easily installed in compact control cabinets, providing a reliable and convenient networking solution for users' Ethernet devices.

TS3000-38EG-ADC-MINI Specification

Category	Details
Product Model	HV-TS3000-38EG-ADC-MINI	HV-TS3000-38EG(P)-ADC-MINI
Hardware Configuration
Interface Type	8 x 10/100/1000Mbps auto-negotiation RJ45 ports
Exchange Capacity	16G
Packet Forwarding Rate	12Mpps
MAC Address Table	2K
Buffer	2M
Network Protocol	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
	IEEE802.3u 100Base-TX; IEEE802.3x;
	IEEE802.3z 1000Base-X;

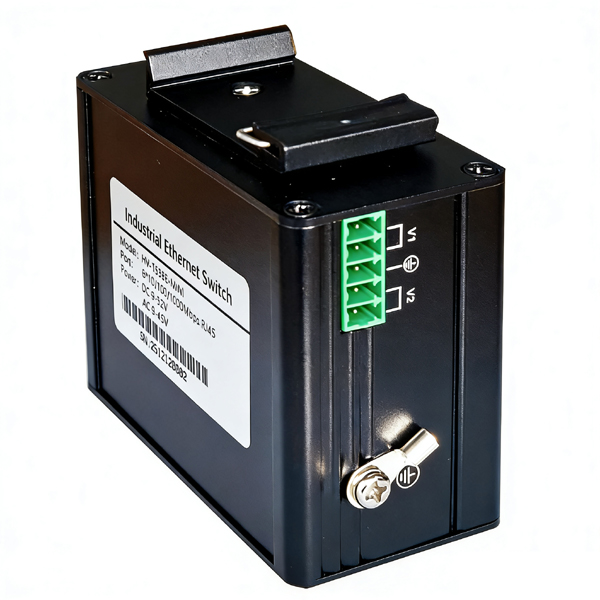

Power Interface	5.08mm Phoenix terminal, supporting dual power redundancy
LED Indicators	PWR (Power LED): Power indicator (Blue)
	Link/ACT LED: Port indicator (Green)
	PoE LED: PoE indicator (RED)
Optical Fiber Interface	/
Transmission Distance	PoE/Non-PoE: 0~100 meters for 10/100/1000Mbps (CAT5e, CAT6)
Transmission Medium	10BASE-T: Cat3, 4, 5 or higher twisted pair
	100BASE-TX: Cat5, 5e, 6 or higher twisted pair
	1000BASE-TX: Cat5e, 6 or higher twisted pair
Single mode Fiber	/
Multimode Fiber	/
Optical Port Type	/
Exchange Mode	Store-and-forward
Power over Ethernet (PoE)	Not supported	Supported
PoE Protocol	/	IEEE802.3af/at
PoE Pin Assignment	/	1/2+, 3/6-
Input Voltage	DC: 9-60V (external power supply) AC: 24/48V (external power supply)	DC: 47-58V (external power supply) AC: 48V (external power supply)
Max Power Consumption	≤3W	≤125W (including PoE)
PoE Port Quantity	/	8
MAX Power per Port	/	15.4W/30W
PoE Short Protect	/	Supported
Function Switch	/
Operating Temperature	-40℃~+75℃
Storage/Transport Temperature	-40℃~+85℃
Relative Humidity	5%~95% non-condensing
Thermal Methods	Fanless design, natural heat dissipation
MTBF	100,000h
EMC	Power Surge Protection: IEC 61000-4-5 4KV/2KV (8/20us)
	Port Surge Protection: IEC 61000-4-5 4KV/2KV (10/700us)
	ESD Protection: IEC 61000-4-2 8K/15K
Product Size	806540mm
Shell Material	Aluminum alloy
Installation Method	DIN rail mounting
Protection Grade	IP40
Qualification Certification	CE/FCC/RoHS
Net Weight	0.4KG
Accessories	Device, Qualification Certificate, User Manual
	Power Adapter (not standard: optional purchase on demand)
Warranty Period	3 years

Product Selection

Model	Description
HV-TS3000-38EG-ADC-MINI	8 x 10/100/1000M auto-negotiation electrical ports, DC(9-60V)+AC(24/48V) dual power redundancy supply, DIN rail mounting, wide temperature range (-40℃-75℃) - CE-RoHS-FCC;
HV-TS3000-38EG(P)-ADC-MINI	8 x 10/100/1000M auto-negotiation PoE electrical ports, DC(47-58V)+AC(48V) dual power redundancy supply, DIN rail mounting, wide temperature range (-40℃-75℃) - CE-RoHS-FCC;
