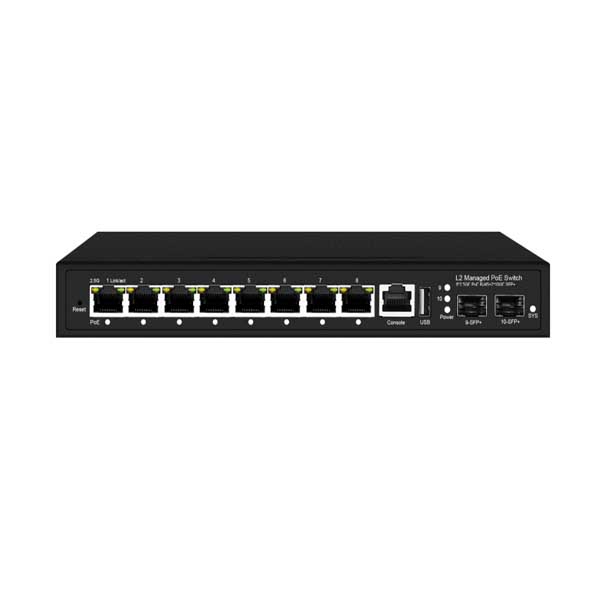

| Model | S3504GT-2SX-EX |
| Product name | 10G Fiber uplink+2.5GE LAN Managed Switch |
| Fixed Port | 8*2.5G/1G/100M/10M RJ45 port |
| 2*10Gbps SFP+ | |
| 1*console port | |
| 1*USB port | |
| Reset Key | 1 |
| Fan | Fanless |
| Console | 1*RJ45 Console |
| 1*USB 2.0 | |
| Main Chip | Realtek RTL9302D |
| CPU | MIPS-34Kc 800GHz |
| DDR | 2G DDR3 |
| FLASH | 256MBytes |
| RAM | 256MBytes |
| Bandwidth | 80Gbps |
| Packet Forwarding | 59.52Mpps |
| MAC | 16K |
| Buffer | 12 Mbit SRAM Packet Buffer |
| Jumbo Frame | Jumbo frame up to 12KB |
| VLAN Address | 4K |
| Transmission Distance | 10BASE-T：Cat3,4,5 UTP(≤250m) |
| 100BASE-T：Cat5 or later UTP(≤150m) | |
| 1000BASE-T：Cat6 or later UTP(≤150m) | |
| 2500BASE-T：Cat6 or later UTP(≤100m) | |
| SFP: 10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) | |
| LED Indicator | PWR:Power LED(sys LED) |
| Port:Network connection LED | |
| Port1-8: Link/Act 2.5G Speed LED | |
| Port9-10: 1G/2.5G Link/Act、10G Link/Act LED | |
| Power | External power DC：12V 2A Max 15W |
| (100-240Vac 50/60Hz 0.4A) | |
| Environment | Operating Temperature：-10℃～55℃ |
| Storage temperature：-40℃～75℃； | |
| Operating humidity：5%～90% RH Non coagulation | |
| Storage humidity：5%～95% RH Non coagulation | |
| Size（L*W*H） | 168mm*115mm*32mm （product） |
| 265mm*220mm*68mm（package） | |
| N.W/G.W（kg） | 0.7kg/1.0kg |
| Lightning | 6KV 8/20us； |
| Protection level | IP30 |
| Installation | Desktop |
| Certificate | CE-EMC EN55032；CE-LVD EN62368； |
| FCC Part 15 Class B；RoHS； | |
| Warranty | Whole device for 1 year(Accessories not included) |
