Model

S5324TS-6SX

Product name

10G uplink core L3 management switch

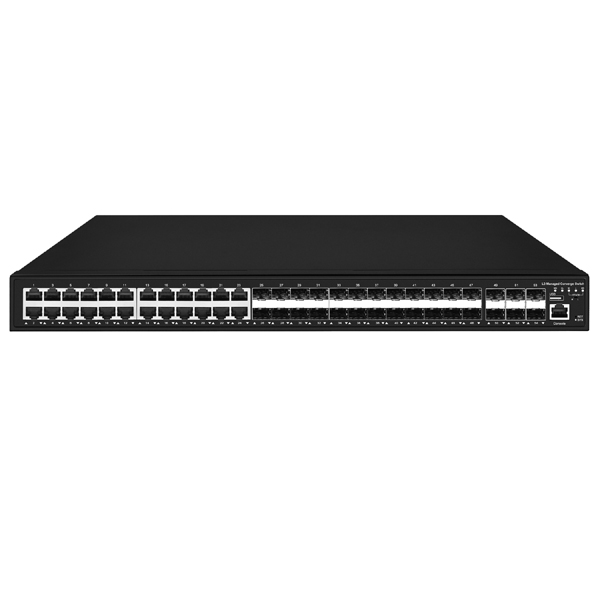

Fixed Port

24*10/100/1000M RJ45

24*100/1000M SFP

6*100/1000/10000M SFP

Console port

1*console port

Reset Key

1

Stacking switch

1 group Stacking Master/Slave

CPU

MIPS-34Kc dual-core 1GHz

DDR

4G DDR3

FLASH

512MBytes

RAM

512MBytes

Bandwidth

512Gbps

Packet Forwarding

160.71Mpps

MAC

32K

Buffer

16Mbit SRAM Packet Buffer

Jumbo Frame

Jumbo frame up to 12KB

VLAN Address

4K

Link Aggregation

Supports 128 trunk groups with up to 8 members per group

L3 Routing

IPV4 supports 12K; IPV6 supports 12K；

QoS Queue

8

Transmission Distance

1-24ports:

10BASE-T ： Cat3,4,5 UTP (≤250 meter)

100BASE-TX ： Cat5 or later UTP (150 meter)

1000BASE-TX ： Cat6 or later UTP (150 meter)

24-48ports:

SFP: 100M/1G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module)

49-54ports:

SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module)

LED Indicator

PWR: Master Power LED ; Slave Power LED

SYS: System LED

1-48:100M/1000M Network connection indicator

Green: link/act：Orange: 1G Speed

49-54:1G/10G SFP connection indicator

Green: link/act： Orange: 10G Speed

Stacking: Master LED; Slave LED; Error LED

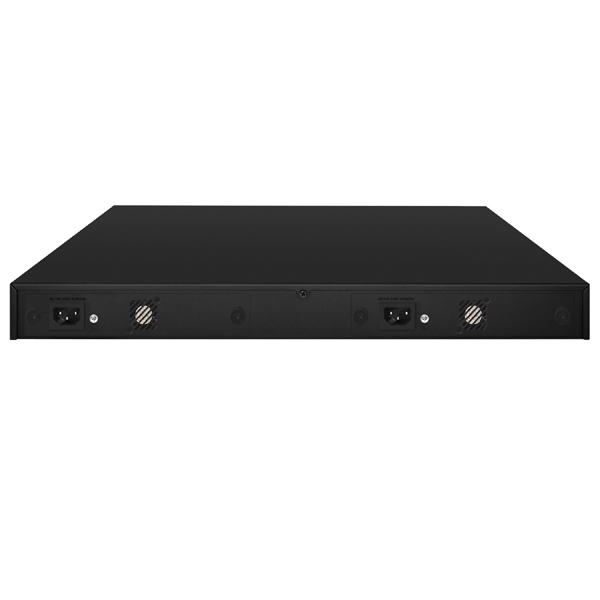

Power

Built in Hot-swappable redundant power supplies

AC：100-240Vac 50-60Hz 1.2A Max 100W

FAN

3 set temperature control fans

Operating Temperature/Humidity

-10～+55°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+75°C；5%～95% RH Non coagulation

Product /Packing

 size（L*W*H）

440mm*345mm*45mm

553mm*403mm*93mm

N.W/G.W（kg）

5.5kg/6.51kg

Lightning

Protection level

6KV 8/20us；

IP30

Installation

Rack-mount (optional machine hanger spare parts)

Certificate

CE-EMC EN55032；CE-LVD EN62368；
FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year(Accessories not included)
