Model

S5348S-6SX

Product name

Core convergence optical L3 managed Switch

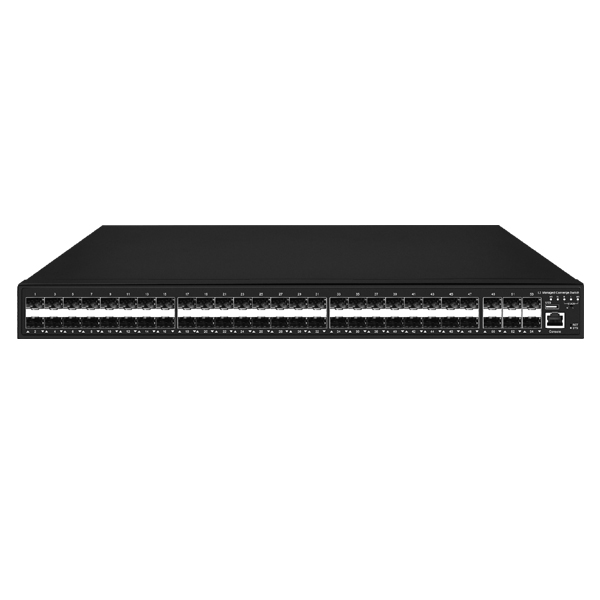

Fixed Port

48**100/1000M SFP

6*100/1000/10000M SFP

Console port

1*console port

Reset Key

1

Stacking switch

1

Master slave power indicator light

Support

CPU

MIPS-34Kc dual-core 1GHz

DDR

4G DDR3

FLASH

512MBytes

RAM

512MBytes

Bandwidth

512Gbps

Packet Forwarding

160.71Mpps

MAC

32K

Buffer

16Mbit SRAM Packet Buffer

Jumbo Frame

Jumbo frame up to 12KB

VLAN Address

4K

Link Aggregation

Supports 128 trunk groups with up to 8 members per group

L3 Routing

IPV4 supports 12K; IPV6 supports 12K；

QoS Queue

8

Transmission Distance

1-48ports:

SFP: 100M/1G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module)

49-54ports:

SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module)

LED Indicator

PWR(M/L): Power LED

SYS: System LED

1-48:100M/1000M Network connection indicator

49-54:1G/10G SFP connection indicator

Stacking: Master LED; Slave LED; Error LED

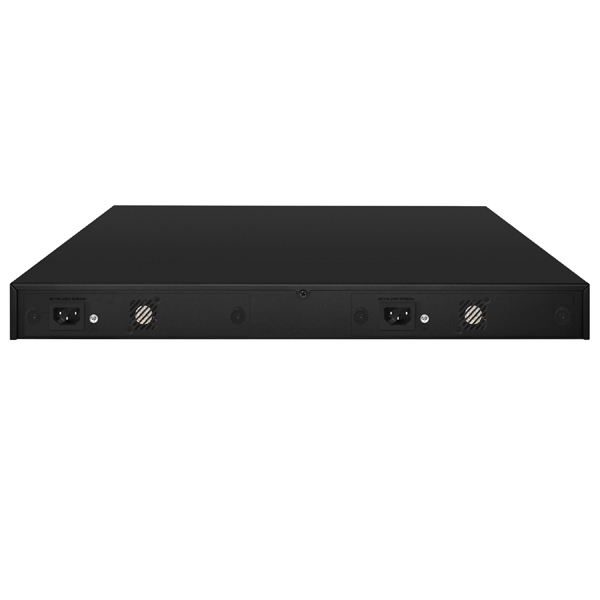

Power

Built in redundant dual power supply

AC：100-240Vac 50-60Hz 01.2A   max 100W

Supports hot swapping

FAN

4 sets of temperature controlled fans

Operating Temperature/Humidity

-10～+55°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+75°C；5%～95% RH Non coagulation

Product /Packing

 size（L*W*H）

440mm*345mm*45mm

553mm*403mm*93mm

N.W/G.W（kg）

5.92kg/6.99kg

Lightning

Protection level

6KV 8/20us；

IP30

Installation

Rack-mount (optional machine hanger spare parts)

Certificate

CE-EMC EN55032；CE-LVD EN62368；
FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year(Accessories not included)
