With the popularity of the application server network card rate from Gigabit to 10G, new requirements are put

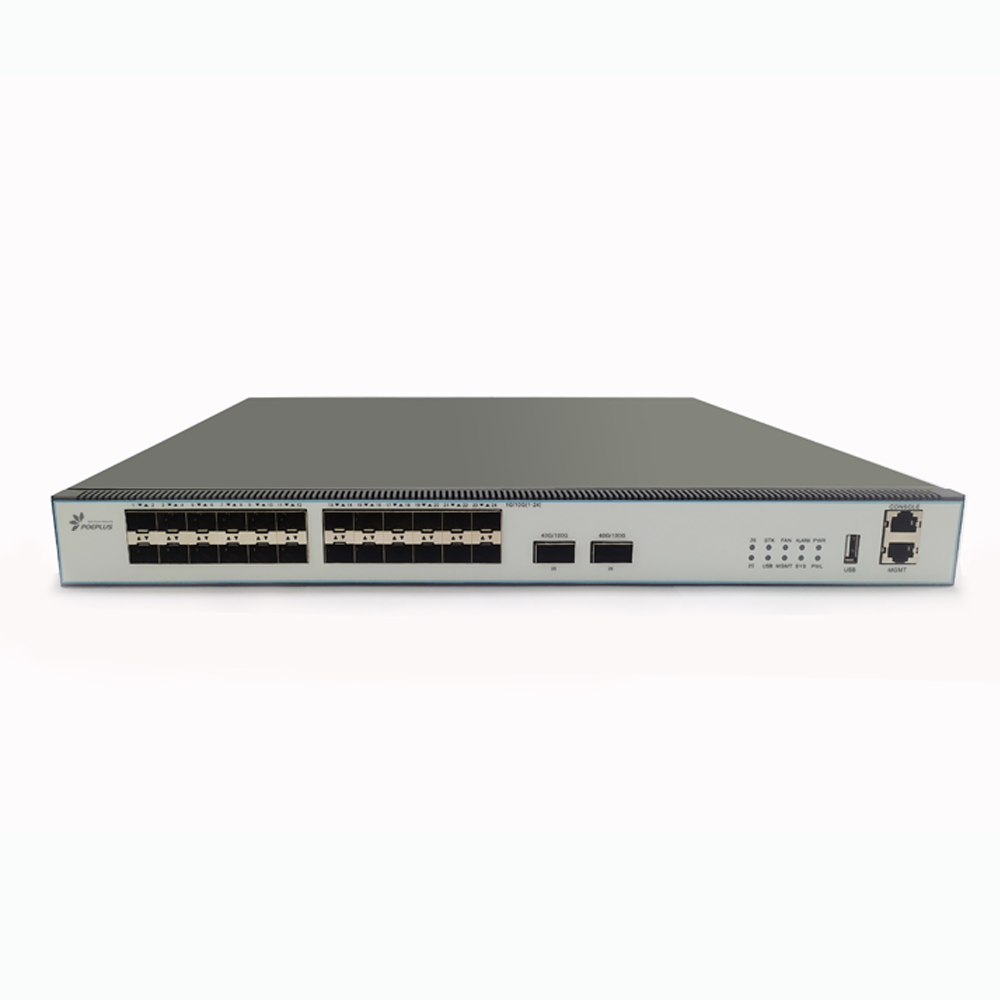

forward for the port bandwidth and access density of the network access layer switches. S5800-24X2C data center
access switch can provide fixed 24 *10G optical ports and can provide 2*40G/100G high-speed uplink ports. The port
combination fully satisfies the port combination and density requirement of data center construction for access-
layer switches
S5800-24X2C switch not only supports the traditional STP/RSTP/MSTP spanning tree protocol, but also supports the
G.8032 international standard ERPS protocol issued by ITU-T. This standard can realize 50ms fast loop recovery
under Ethernet ring network. One switch can connect to multiple aggregation switches through multiple links,
significantly improving the reliability of access devices.
Support line-rate IPv4/IPv6 dual-stack
Support IPv4 router protocol static routing
Support RIP, OSPFv3, BGP4+, and ECMP
Supports IPv6 addressing
The hardware based ACL processing mechanism is adopted to ensure the control requirements of Gigabit
high-speed forwarding; it supports ACL access control from the L2 to L7, which can be based on the source and
destination MAC addresses, source and destination IP addresses, UDP/TCP port numbers, and IP addresses. The
protocol type and other information classify the data flow, and set the access control rules according to the data
classification. You can set permit or deny, and then apply the rules to VLANs or physical ports; support the global ACL
function, which expands the number of effective ACL entries
S5800-24X2C fully implements the DIFFSERV model, provides up to 8 QoS queues, supports DSCP/TOS/802.1P and
other QoS methods, SP, SRR, WRR, WFQ and hybrid scheduling and other priority queue scheduling algorithms,
which can achieve port speed limit QoS functions such as traffic shaping to meet customer network requirements for
data processing priority;support port trust, configurable trust CoS, DSCP, IP priority, port priority, and modify the
DSCP and CoS values of data packets; according to the port , VLAN, DSCP, IP priority, ACL table to classify the traffic,
modify the DSCP and IP priority of the data packet, and specify different bandwidths to provide different service
quality for voice/data/video transmission in the same network. Support QinQ function, encapsulate the user's private
network VLAN tag in the public network VLAN tag, so that the message will pass through the backbone network with
two layers of VLAN tag to realize the intercommunication of the user's private network
Support CLI command line management based on serial port, Telnet and SSHv2
Support RFC1213 SNMP (Simple Network Management Protocol)
Support WEB-based configuration operation management
|
Model |
S5800-24X2C |
|
|
LAN port |
24* 10G SFP+ port |
|
|
Uplink port |
2* 40G QSFP/100G QSFP28 port |
|
|
Mgmt port |
1* Console/1* USB |
|
|
Switching capacity |
880Gbps |
|
|
Forwarding rate |
654Mbps |
|
|
Memory |
128MB flash / 1G DDR |
|
|
Size |
440×320×43.6 mm |
|
|
Power consumption |
≤125W |
|
|
Full weight |
≤ 3.5kg |
|
|

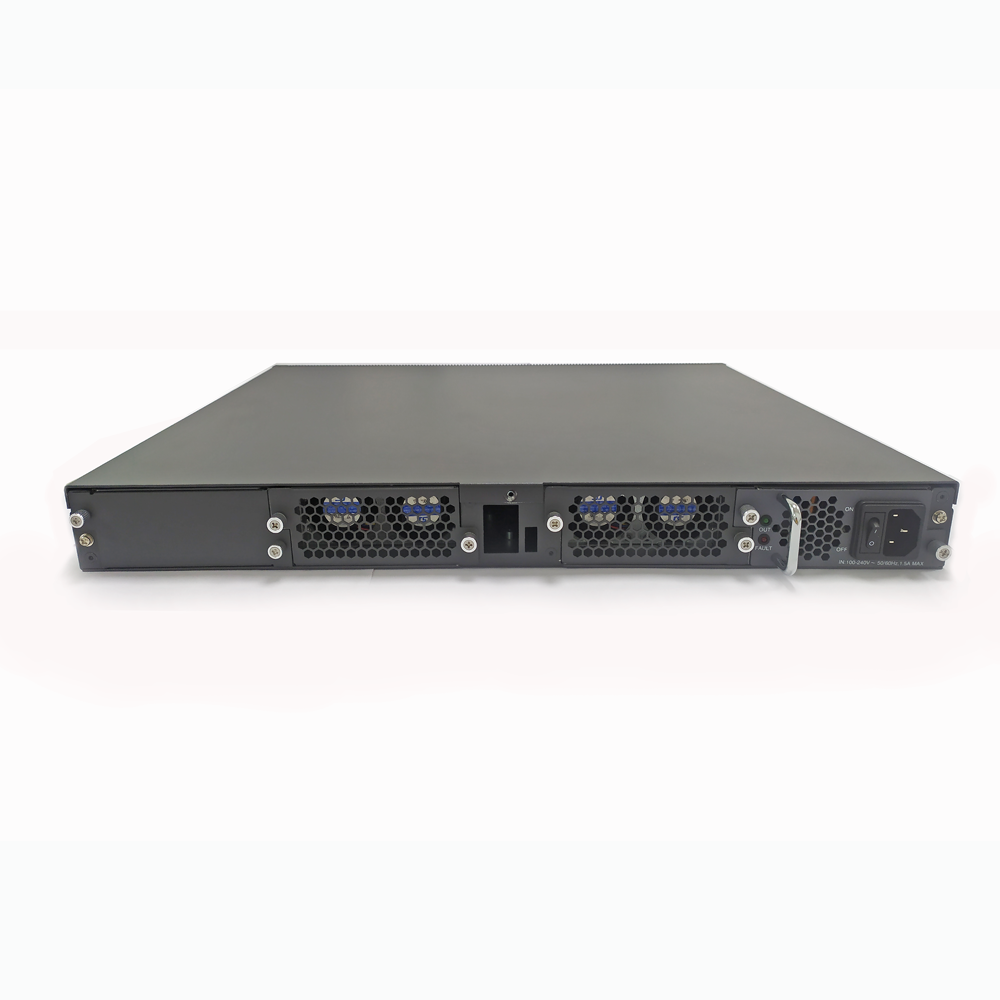

Power |
1+1 Redundant power supply |
|
|
Cooling system |
Hot-swappable smart fan（Fan speed control and alarm alert） |
|
|
Temperature |
Operating temperature：-15℃～55℃ |
|
|
Storage temperature：-40℃～70℃ |
||
|
Humidity |
Working humidity：10%～90% ，Non-condensation |
|
|
Store humidity：5% ～ 95% ，Non-condensation |
||
|
Software |
||
|
L2 switching |
MAC Address |
128K MAC address table Manual add and delete MAC address table Manual configuration of MAC address aging time Port close MAC address learning function Support port MAC address quantity control Support port MAC address filtering function |
|
VLAN |
4K VLAN (802.1Q) |
|
|
Spanning Tree |
STP/RSTP/MSTP |
|
|
Port |
Two-way bandwidth control Static and LACP dynamic aggregation port aggregation Multi-port mirroring Port storm suppression 9K Jumbo ultra-long frame forwarding |
|
|
Security |
User security |
Anti-ARP-spoofing spoofing protection Anti-ARP-flooding flooding attack automatic suppression IP Source Guard automatically creates IP+MAC+port+VLAN binding table Port Isolation hardware isolates messages between ports MAC address binding to port and port MAC address filtering User identity authentication of IEEE 802.1x and AAA/Radius |
|
Switch security |
Prevent various DOS attacks and virus attacks against the CPU on the control layer SSHv2 Secure Shell SNMP v3 encryption management Security IP Telnet login and password mechanism Adopt maintenance user classification protection to prevent illegal intrusion by unauthorized users |
|
|
Network security |
ARP traffic detection based on each user's MAC address ARP message suppression or user blocking based on ARP traffic inspection One-key binding based on dynamic ARP table Manual binding of parameters such as IP address, VLAN ID, MAC address and port L2-L7 ACL flow filtering Port broadcast/multicast message suppression and automatic shutdown of dangerous ports DHCP Option82 and PPPoE+ mark upload user physical location information |
|
|
Service |
ACL |
Standard and extended ACL ACL strategy based on time range (Time Range) Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP (IPv4/IPv6) address, TCP/UDP port number, protocol type, etc. L2～L7 in-depth IP packet header 80-byte packet filtering |
|
QoS |
Limit the rate of receiving and sending packets on the port or custom flow Message mirroring and message redirection Prioritize ports or custom streams, and provide 802.1P and DSCP priority Remark Advanced queue scheduling based on port or custom flow, 8 priority queues per port/flow, and multiple queue scheduling algorithms such as SP, WRR, SP+WRR, etc. |
|
|
|
Layer2 Multicast |
IGMPv1/v2/v3 Snooping |
|
Fast leave |
||
|
Static IGMP snooping group |
||
|
MVR（Multicast VLAN Registration） |
||
|
Static and dynamic ARP entries |
||
|
ARP |
Aging of ARP entries |
|
|
Gratuitous ARP |
||
|
basic ARP-Proxy |
||
|
local ARP-Proxy |
||
|
IPv4 |
IPv4 Unicast Routing |
IPv4 Static Routes |
|
uRPF check |
||
|
RIPv1/v2 |
||
|
OSPFv2 |
||
|
IS-IS |
||
|
BGP |
||
|
ICMP redirect |
||
|
ICMP unreachables |
||
|
ECMP |
||
|
IPv4 Multicast Routing |
IGMPv1/v2/v3 |
|
|
IGMP-Proxy |
||
|
IGMP SSM Mapping |
||
|
PIM-SM |
||
|
PIM-SSM |
||
|
PIM-DM |
||
|
IPv6 |
IPv6 Basic Protocol |
ICMPv6 |
|
NDP |
||
|
PMTU |
||
|
IPv6 Unicast Routing |
IPv6 Static Routes |
|
|
RIPng |
||
|
BGP4+ |
||
|
OSPFv3 |
||
|
IS-IS |
||
|
MLD v1/v2 |
||
|
MLD v1/v2 Snooping |
||
|
Reliability |
Loop protection |
ERPS Loopback-detection |
|
Link protection |
FlexLink RSTP/MSTP/LACP Static link aggregation |
|
|
Redundancy |
VRRP |
|
|
Management |
Network management |
Telnet-based port real-time traffic, utilization, and statistics of received and sent packets LLDP Neighbor Discovery Protocol RMON (Remote Monitoring) 1, 2, 3, 9 MIB RFC3176 sFlow flow analysis, which can realize flow monitoring and statistics based on protocol or address Data log and RFC 3164 BSD Syslog Protocol Ping and Traceroute |
|
Device management |
CLI, Console port, Telnet, SSH and WEB configuration management SNMP V1/V2c/V3 management SNTP protocol User classification authority |
|
