S604GP-1TS-150W Overview

S604GP-1TS-150W is an industrialgrade gigabit outdoor waterproof PoE switch with IP67 protection rating. Built with aluminum diecasting housing and nylon waterproof joints, it is designed for harsh outdoor deployment, supporting wide operating temperature range and 6KV lightning surge protection. This switch comes with 4×Gigabit PoE RJ45 ports, 1×Gigabit uplink RJ45 port and 1×1G SFP fiber slot. Port 1 supports IEEE802.3bt with up to 90 W PoE output; Port 24 support IEEE802.3af/at up to 30 W per port. It integrates dual watchdog mechanisms: POEDOG for PoE powered devices and FIBERDOG for fiber link fault auto recovery. It supports long distance Ethernet transmission and dual ACDC power input, making it perfect for outdoor surveillance, remote wireless AP and field network projects.

S604GP-1TS-150W Specification

Item	Specification
Model	S604GP-1TS-150W
Product Type	Gigabit IP67 Outdoor Waterproof PoE Switch
Housing Material	Aluminum diecasting body, Nylon waterproof joint
IP Rating	IP67
Supported Cable Diameter	Φ48 mm
Fixed Ports	4×10/100/1000BaseTX(Data+PoE); 1×10/100/1000BaseTX(Uplink); 1×1000M SFP
PoE Output	Port1: IEEE802.3af/at/bt, max 90WPort24: IEEE802.3af/at, max 30W
PoE Pinout	Bt:12+,45+,36,78; Af/at:12+,36
Functions	Port Isolation, Longdistance transmission, POEDOG, FIBERDOG
Switch Bandwidth	12 Gbps
Packet Forwarding Rate	8.928 Mpps
MAC Address Table	2 K
Packet Buffer	2 M
UTP Transmission Distance	10BASET ≤250 m;100BASETX ≤150 m;1000BASETX ≤100 m
SFP Fiber Distance	Max ≤120 km (depends on optical module)
LED Indicators	POE out, PoEport LAN link, Uplink LAN link & 1G SPEED, POEDOG, ACIN, DCIN
Power Supply	AC:100240Vac 5060Hz 1.0A Max 155WDCIN:DC1257V(noPoE max5W); DC4457V(PoE max180W)
Operating Condition	40～+80℃, 5%90%RH Noncoagulation
Storage Condition	40～+90℃,5%95%RH Noncoagulation
Dimension(LWH)	Main body:25515048mm; Packing:30526563mm
Weight	N.W:1.12kg; G.W:1.38kg
Lightning Protection	6KV 8/20us
Installation	Desktop, Wall mounting
Certificates	CEEMC EN55032, CELVD EN62368, FCC Part15 Class B, RoHS
Warranty	1 Year for whole device (accessories excluded)

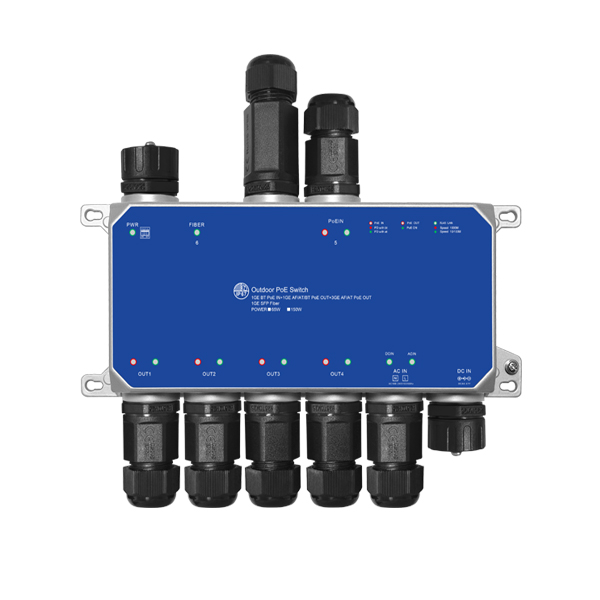

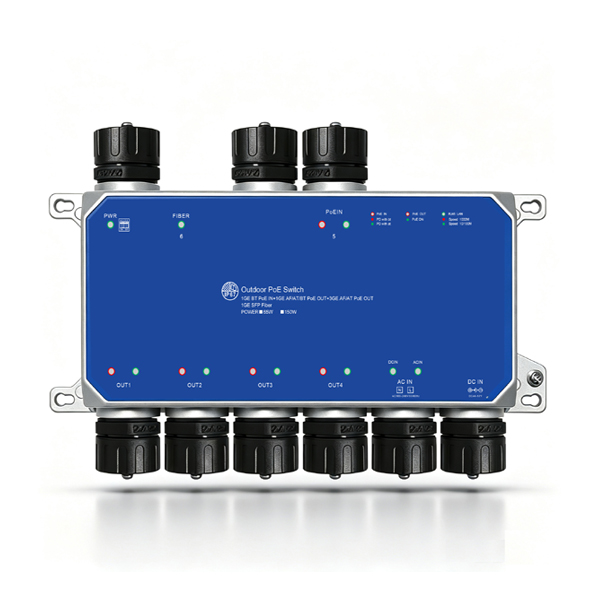

S604GP-1TS-150W

Gigabit IP67 Outdoor Waterproof PoE Switch
