S6105X Overview

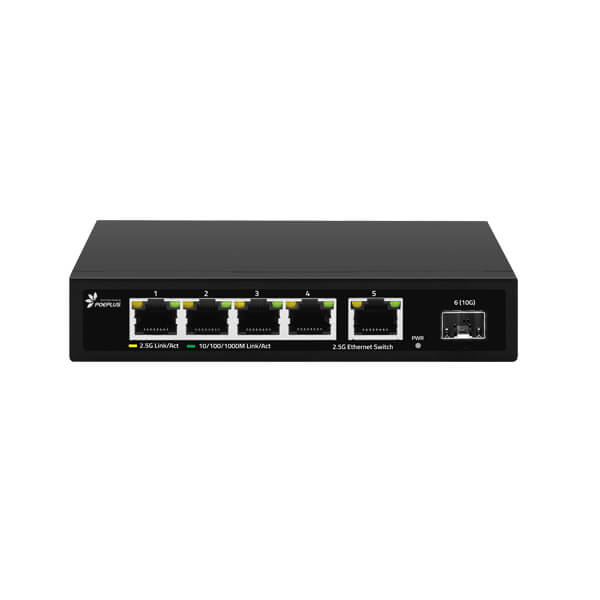

S6105X is 5-port 2.5G Ethernet Switch with 10G SFP+ uplink，using high quality and high speed network chip solution, this product completely solves the problem of loud noise of small switches deployed in the office environment through the fanless silent design. S6105X equip 5* 2.5G RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 10/100/1000M/2.5G Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

10G Uplink

Enhanced with 10G SFP+ optical fiber port, no blocking for download or upload traffic

Easy Installation

No configuration needed, simply connect network devices to the 2.5G Ethernet switch

Fanless Design

Fanless design lowers energy consumption and eliminates operating noise

S6105X Specification

Hardware
Model	S6105X
Power	DC 2.1
Ethernet	52.5G RJ45 Ports 110G SFP+ Port
Performance
Bandwidth	45Gbps
Pack forward rate	33.48Mpps
VLAN	4096
MAC address	4K
Jumbo Frame	12Kbytes
Transfer mode	Storage & forward
MTBF	100000 Hours
Standard
Network protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control)
Industry standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge)
Network Medium	10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m)
Optical Medium	multi mode: 50/125, 62.5/125, 100/140um Single mode: 8/125, 8.7/125, 9/125, 10/125um
Certificate
Safety certificate	CE, FCC, RoHS
Environment standard
Working environment	Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing
Power voltage	Adapter input voltage: AC 100-240 V switch input voltage: DC 12V1A
Indicator
PWR (Power)	On: Powered on Off: Powered off
1-5 Port yellow light	On: 2.5G Link connect normal Off: Link off Flashing: data transmitting
1-5 Port green light	On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting
Physical specification
Structure size	Product Size: 1409328mm Package Size: 20316055mm Product Net-Weight: 0.33KG Product Gross-Weight: 0.46KG
Packing info	Carton size: 580335445mm Packing Qty: 40pcs Packing weight: 19.5KG
Packaging list	1. Switch 1pcs、 2. User manual 1pcs、 3. Certificate 1pcs、 4. Power adapter 1pcs
