LED indicators on this 2.5G switch conveys port status
Equiped with 10G SFP+uplink port, no blocking or download or uplink traffic
Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance
Fanless design lowers energy consumption and eliminates operating noise
No configuration needed, simply connect network devices to the 2.5G Ethernet switch
|
Hardware |
|
|
Model |
S6109X |
|
Power |
DC 2.1 |
|
Ethernet |
8*2.5G RJ45 ports 1*10G SFP ports |
|
Performance |
|
|
Backplane bandwidth |
60Gbps |
|
Packet forwarding rate |
44.64Mpps |
|
VLAN |
4096 |
|
MAC address table |
4K |
|
Jumbo frame |
12Kbytes |
|
Forwarding mode |
Store forward |
|
MTBF |
100000 Hour |
|
Network parameter |
|
|
Network protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz（5G Ethernet） IEEE 802.3z（Gigabit Ethernet） IEEE 802.3ae（10G Ethernet） IEEE802.3x (Flow control) |
|
Industry standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-5(Surge) |
|
Network medium |
10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or higher UTP/STP(≤100m) 1000Base-TX: Cat5 or higher UTP/STP(≤100 MB)) |
|
Optical fiber medium |
Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
|
Certification |
|
|
Safety certification |
CE、FCC、RoHS |
|
Environmental standard |
|
|
Working environment |
Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation |
|
Functional indication |
|
|
PWR（Power indicator） |
Steady on: The power supply is normal Off: No power is on |
|
1-8 Network port yellow indicator |
Steady on: The 2.5G link is properly connected Off: The link is unavailable Shiny: Data transfer |
|
1-8 Network port green indicator |
Steady on: The 10/100/1000M link is properly connected Off: The link is unavailable Shiny: Data transfer |
|
Physical specification |
|
|
Structural dimension |
Product size: 190*100*28mm Package size: 245*190*60mm Product weight: 0.49KG Packing weight: 0.71KG |
|
Packing information |
Outer box size: 505*320*400mm Packing quantity: 20 sets Packing weight: 15.2KG |
|
Operating voltage |

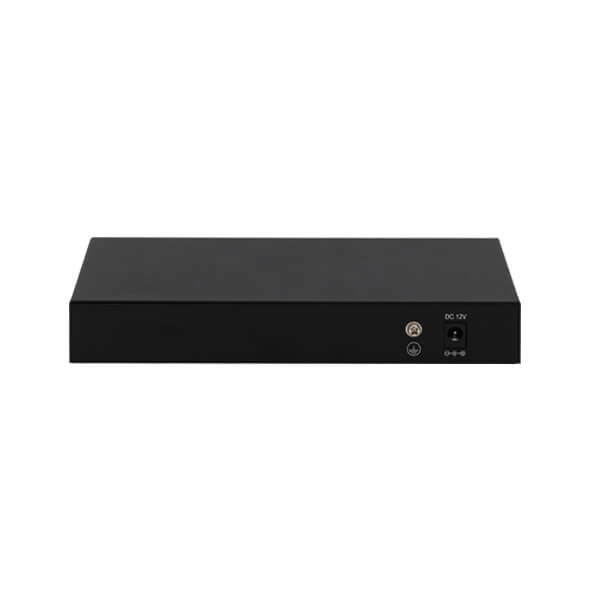

Adapter input voltage: AC 100-240 V Switch input voltage: DC 12V2A |
|
Packing list |
1. Switch 1pcs、 2. Specification 1pcs、 3. Certificate of qualification 1pcs、 4. Power adapter 1pcs |
