Model

SP2430-B

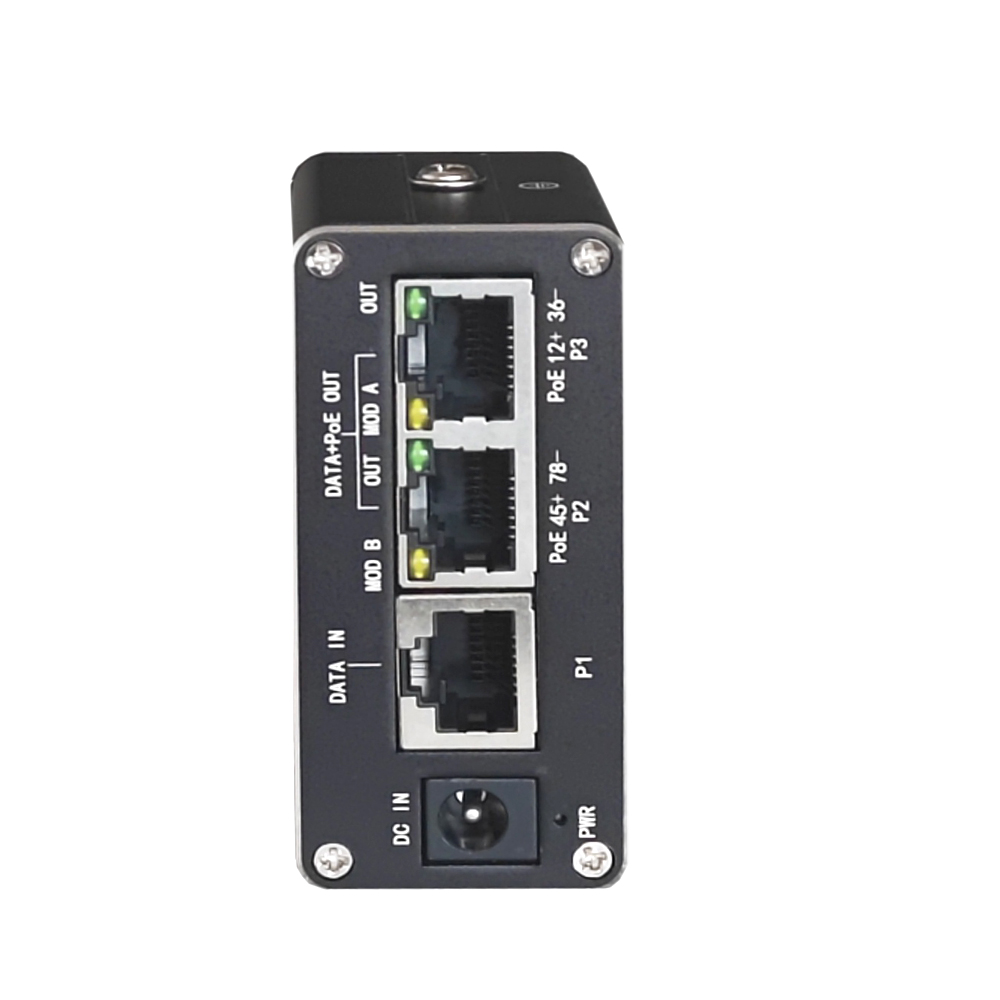

Port

1*RJ45*10/100/1000M Data IN

2*RJ45*10/100/1000M PoE OUT（Mode A or Mode B）

1* DC IN (2P) power terminals

Standard

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

DC IN

DC(2P)：24V MAX 2A

PoE Output

24Vdc passive POE 12+，36-（Mode A）；45+，78-（Mode B）

Poe Out Watt

MAX 30W

Data Pin

1234,5678

PoE Out

Mode A:12+,36-；Mode B: 45+,78-

Indicator

PWR：Power ON

Transmission

10Base-T: two pairs of Cat3 or latter UTP/STP(≤250m)

100Base-TX: two pairs of Cat5 or latter UTP/STP(≤150m)

1000Base-T: for pairs of Cat5e or latter UTP/STP(≤100m)

Features

Plug and play without more configuration management

Reliability：MTBF＞100k hours

Lightning Protection

6KV 8/20us；6KV ESD protection

Protect grade

IP40

Operation

Environment

Operation Temperature：-30℃～75℃

Storage Temperature：-40℃～85℃

Operation

Environment

Operation Humidity：10%～90% RH Non coagulation

Storage Humidity：5%～90% RH Non coagulation

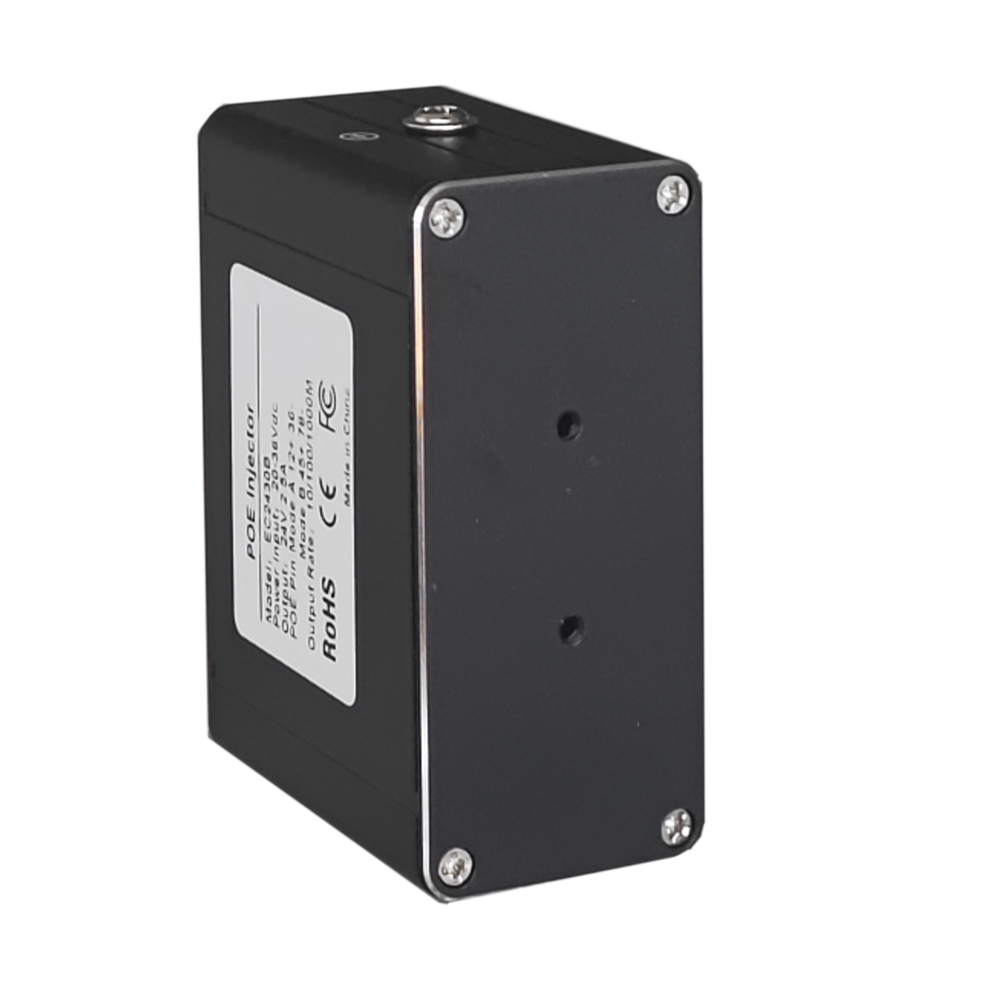

Product Size

54*70*32mm（bracket not included）

Package size

120*100*59mm

Weight

200g

Package info

80PCS/CTN，510*430*320mm，25kgs/CTN

Warranty

1 year
