48-port 2.5G Switch with 40G uplink(Dual-AC)

  • 48 x 10/100/1000M/2.5G Base-T
  • 2x 40Gb QSFP+ 4x 25G/10G Uplinks
  • Support 1+1 hot-swap power module
  • Smart Fans, auto-adapted speed against temperture
  • Support QinQ, BGP, MLAG
  • Support full IPv4/IPv6 protocol
  • 1U Rack-mount design

Thanks a lot for your inquiry and we will handle it as early as possible.

S6348-4X2Q-EI   Overview

S6348-4X2Q is a high-performance Layer 3 Ethernet switch with 48*2.5Gb BASE-T and 4*25Gb SFP28 and 2*40Gb QSFP+ in a compact 1U form factor. Our OS system delivers robust feature support,Provide complete Layer 3 network features. Built from the ground up with the combination of advanced hardware and software, the switch provides a powerful Layer 3 routing solution for next generation enterprise, WIFI6 Access, Metro and HCI (Hyper Converged Infrastructure) networks. S6348-4X2Q-EI 48-port L3+ 2.5G Managed Switch, with 48*2.5G Base-T, 4*25G and 2*40G uplinks, support Hot-swapable Dual Power, Smart Fans S6348-4X2Q-SI 48-port L3+ 2.5G Managed Switch, with 48*2.5G Base-T, 4*25G and 2*40G uplinks, Smart Fans

Comprehensive Network Security Policy

S6348 Series routing switches supports subscriber-class / switch-class / network-class security control.
IPv4 / IPv6 / MAC ACL can filter IPv4 / IPv6 / Non-IP packet respectively. Besides that, extended IPv4/IPv6 ACL which can match Layer2 / layer3 / layer4 information in one rule is available. The ACLs can apply to physical ports / vlan / port group / vlan group. The members of port group or vlan group share a set of ACLs and save the TCAM resource.
ARP Inspection and IP Source Guard features prevent network from malicious ARP attack. Support CPU Traffic Protection, Storm control and CPU load optimization features. Support centralized 802.1x authentication feature to forbidden illegal user accessing network.

Triple-play Service Support with Bandwidth Guaranty

S6348 Series routing switches offers high bandwidth for Triple-Play services such as IPTV, video monitoring. The built-in QoS capabilities and flexible queuing technologies guarantee high quality of services.
Rich multicast protocol set (IGMP Snooping, IGMP v1/v2, PIM-SM) support up to 2K multicast groups and 4K logical replications per group. With FOS software, IPTV service and multicast latency control are fully supported.

Outstanding QoS Control

S6348 Series routing switches provides 13 hardware queues per-port (8 unicast queues, 4 multicast queues, and 1 monitor queue).Support multi-stage scheduling technology such as WDRR (Weighted Deficit Round Robin) / SP (Strict Priority) and TD (Tail Drop) / WRED (Weighted Random Early Detection) to prevent congestion. Support flexible queue scheduling mechanism to do the shaping for queue or port traffic.
Ingress and egress policer provide intelligent bandwidth monitoring, which support to adjust the granularity according to the port speed. Both srTCM (Single Rate Three Color Marker) and trTCM (Two Rate Three Color Marker) can be supported.

High Reliability

S6348 is powered by Hot-swappable power modules which supports AC/DC 1+1 redundancy;Fans support 1+1 redundancy;Support Real-time environment monitoring technology to detect the chipset temperature, status of fan and power, etc.
Support LACP / ECMP / VRRP / VARP / STP/RSTP/MSTP / Smart Link / BFD / ERPS / G.8031 / G.8032 / Load-Balancing, etc. to protect the network traffic all-around effectively.
Patented technology “Sysmon” for CPU status monitoring can take action when system is error.

Data Center Features

Support MLAG (Multi-Chassis Link Aggregation) to aggregate links across different devices.
Support overlay technology (include NVGRE/VXLAN/GENEVE etc.). Overlay can make layer2 packets across the layer3 networks by using NVGRE/VXLAN/GENEVE header to encapsulate the entire Ethernet packets. Overlay resolves the problem of MAC table size limitation in traditional layer2 networks, resolves the problem of VLAN id count limitation, and resolves the problem network dynamic adjustment which cannot achieve by VLAN/VPN. Use VXLAN for example, 24 bits VNI identifier can support at most 16777215 logic networks, layer2 networks built by VXLAN can keep the same IP/MAC etc. when move the virtue machine.
Supports RPC-API for SDN (Software Defined Network). SDN is a new architecture of network which can substantially simplify the management and maintenance by separating the control plane and data plane of the network.

Intelligent Ethernet OAM

With the IEEE802.1ag and ITU-T Y.1731 end-to-end OAM, Ethernet service providers can monitor the services, survey the end-to end performance and ensure the service quality match the agreement.
The fault managementtechnique includes CCM, LTM and LBM. Performance targets include measure for latency and jitter.
S6348 Series routing switchesSupport remote management,network monitoring,network fault indication,remote loopback and MIB parameter retrieval according to the standard 802.3ah EFM.

Customized Profile for Different Deployment Scenarios

The Flexible Table Management (FTM) technology offers multiple table size configuration profiles as optimized choices for different network scenarios. Support up to 112K * MAC address tables. Support up to 56K * IP routing tables.

Green and Energy Saving

Intelligent FAN adjustment and real-time power consumption monitoring technology are provided for the cost of
maintenance redundancy and help to build a green and energy saving networks.

S6348-4X2Q-EI   Specification

Product

S6348-4X2Q-EI

S6348-4X2Q-SI

Ethernet Ports

48*2.5Gb RJ45

48*2.5Gb RJ45

4*25Gb/10Gb SFP28

4*25Gb/10Gb SFP28

2*40Gb QSFP+

2*40Gb QSFP+

Management Ports

1*Console Port (RJ45)

1*Console Port (RJ45)

1* RJ45 Mgt Port

1* RJ45 Mgt Port

Power Supplies

2*250W (1+1 Redundancy)
Hot-swappable Power Modules

1*200W fixed Power Supply

Fans

2*Hot-swappable smart fan

4* fixed smart fan

Airflow

Front-to-Back

Front-to-Back

Flash Memory

8GB EMMC(OS)

8GBEMMC(OS)

4MB SPI Flash(Boot)

4MB SPI Flash (Boot)

DRAM

2GB

2GB

Switching Capacity

600Gbps

600Gbps

MAC address

98304

98304

Size

442mm*379mm*43.6mm

442mm*290mm*43.6mm



SOFTWARE FEATURE (● Support  ○ Unsupport)

Type

Feature

Description

EB Linsence

MS Linsence

Ethernet

interface

Ethernet interface operating modes(full duplex, half duplex, and auto-negotiate

Ethernet interface operating rates

Jumbo Frame

port-xconnect

Flow-control

Flow-control TX/RX

storm-control

Port based storm-control

Port-block

Port-block(know-unicast/unknow-unicast/know-multicast/unknow-multicast/broadcast)

Port-isolate

L2/L3/All Port-isolate

Uni-direction isolate

L2 Protocol Tunnel

L2 Protocol Tunnel(support CDP/CFM/DOT1X/LLDP/SLOW-PROTO/STP/VTP

Forward mode

Store-and-forward

Cut-through

VLAN

VLAN Access mode

Access/Trunk

Default VLAN

VLAN Classification

VLAN Classification(port based/mac based/ip based/protocal based)

QinQ

Basic QinQ

Selective QinQ

VLAN Mapping(1:1 VLAN Translation)

VLAN Statistics

VLAN Statistics

Private VLAN

Private VLAN

Voice VLAN

Voice VLAN

Guest VLAN

Guest VLAN

MAC

MAC Address Table

Automatic learning and aging of MAC addresses

Hardware Learning

Static and dynamic MAC address entries

blackhole MAC

MAC Flapping detect

MAC Flapping detect

Port Bridge

Port Bridge

LAG

Link aggregation

Static-LAG & LACP

LAG load balance(SLB)

LAG load balance(DLB)

LAG load balance(RR)

LAG Self-healing

STP

STP

Spanning-Tree Protocol

RSTP

Rapid Spanning-Tree Protocol

MSTP

Multi-instance Spanning-Tree Protocol

Spanning-Tree Protocol Protection

BPDU Filter/Guard

Root Guard

Loop Guard

Anti TC-BPDU attack

ERPS

ERPS

Single ERPS ring

tangent ERPS rings

intersecting ERPS rings

compatible with RRPP

G.8031

G.8031

G.8031(Ethernet Linear Network Protection)

G.8032

G.8032

G.8032 V1&V2

Single Ring

Sub Ring

Loopback Detect

Loopback Detect

Loopback-detection

Layer2

IGMP Snooping

IGMPv1/v2/v3 Snooping

Fast leave

Static IGMP snooping group

Multicast

MVR

MVR(Multicast VLAN Registration)

ARP

ARP

Static and dynamic ARP entries

Aging of ARP entries

Gratuitous ARP

ARP proxy

basic ARP-Proxy

local ARP-Proxy

IPv4 Unicast Routing

IPv4 Static

IPv4 Static Routes

blackhole Routes

co-work with IP SLA

VRF(Virtual Routing and Forwarding)

Routes

uRPF check

RIP

RIPv1/v2

OSPFv2

OSPFv2

IS-IS

IS-IS

IBGP

BGP

EBGP

Route-map

Route policy

IPy4 prefix-list

PBR

PBR(Policy-based Routing)

ICMP

ICMP redirect

ICMP unreachables

ECMP

ECMP(SLB)

ECMP(DLB)

ECMP(RR)

ECMPSelf-healing

IPv4 Multicast Routing

IGMP

IGMPv1/v2/v3

IGMP-Proxy

IGMP SSM Mapping

PIM

PIM-SM

PIM-SSM

PIM-DM

IPv6 Basic Protocol

ICMPv6

ICMPv6

NDP

NDP

PMTU

PMTU

IPv6 Unicast Routing

IPv6 Static Routes

IPy6 Static Routes

RIPng

RIPng

OSPFv3

OSPFv3

IPv6 Multicast Routing

MLD v1/v2

MLD v1/v2

MLD v1/v2 Snooping

MLD v1/v2 Snooping

MVR6

MVR6

PIM-SM v6

PIM-SM v6

IP Tunnel

IPv6 over IPv4

IPv6 over IPv4 Tunnel

6to4 Tunnel

6to4 Tunnel

ISATAP Tunnel

ISATAP Tunnel

IPy6 Service

DHCPv6

DHCPy6 Relay

DHCPv6 Snooping

IPv6 Prefix List

IPv6 Prefix-list

BFD

BFD

BFD for Static route

BFD for OSPFv2

BFD for VRRP/Track

BFD for PBR

VRRP

VRRP

VRRP

Track for VRRP

Smart Link

Smart Link

multi-instance

load balance

Multi-Link

Monitor-link

MLAG

MLAG

MLAG basic

MLAG orphan Port

EFM

EFM (802.3ah)

Auto detection

Network fault detetion

Network fault handle

remote loopback

CFM

CFM(802.1ag)

Hardware CCM detect

MAC Ping

MAC Trace

Y.1731

Y.1731

Latency and jitter measure

QoS

Traffic classification

Traffic classification based on COS/DSCP (simple classification)

Traffic classification based on ACL (complex classification)

Traffic classification based on inner header of the tunnel packets

Traffic behaviors

Queue scheduling

Remark the priority fields(COS/DSCP)of the packet based on ACL

Remark the priority fields(COS/DSCP)of the packet based on Table Map

Flow redirection

Flow mirror

Traffic policing

Traffic policing based on direction(in/out) of Port

Traffic policing based on direction(in/out) of VLAN

Traffic policing based on direction(in/out) of flow

Traffic policing based on direction(in/out) of aggregated flow

Traffic shaping

Queue based traffic shaping

Port based traffic shaping

Congestion management

SP(Strict Priority)scheduling

WDRR(Weighted Deficit Round Robin) scheduling

SP+WDRR mixed scheduling

Congestion avoidance

TD(Tail Drop)

WRED(Weighted Random Early Detection)

Traffic statistics

Packet counts and bytes statistics based on traffic classification

Packet counts and bytes statistics based on the color after traffic policing

Forwarded and discarded packet counts and bytes statistics

ECN(Explicit congestion notification)

ECN tags based on Tail Drop

ECN tags based on WRED

VARP

Virtual gateway

VARP(Virtual-ARP)

VARP subnet

Tunnel

VxLAN

Manual configure VxLAN tunnel

VxLAN distributed gateway

VxLAN active-active access

Interconnect across Datacenters based

on VxLAN

L2 Protocol packet passthrough

Edit DSCP in VxLan outer header

Support to enable/disable overlay split horizon per-VNI

GRE Tunnel

GRE Tunnel

NVGRE Tunnel

NVGRE Tunnel

GENEVE Tunnel

GENEVE Tunnel

DCB

DCBX

LLDP support DCBX TLV

PFC

PFC

System Security

SSH

SSHv1/v2

RSA Key generation

RADIUS

RADIUS

TACAS+

TACAS+

AAA

Authentication

Authorization

Accounting

Dot1x

Port based dot1x

MAC based dot1x

Guest VLAN

ACL

MAC/IP ACL

Basic Mode ACL

Port-group ACL

VLAN-group ACL

IPv6 ACL

ACL UDF

Time Range

ARP Inspection

ARP Inspection

IP Source Guard

IP Source Guard

Port Security

Limitation on MAC address learning on interface

VLAN Security

Limitation on MAC address learning on VLAN

Control Plane

Black list/wihte list

Policy(COPP)

Rate limit

CPU Traffic Limit

CPU Traffic Limit

Prevent DDOS attack

Prevent DDOS attack(ICMP Flood/Smurf/Fraggle/LAND/SYN Flood)

Login filter

Telnet/SSH ACLfiltering

Telnet/SSH IPv6 ACLfiltering

MAC Security

MacSec(802.1AE)

Link-Flapping detection

Link-Flapping detection

Network Management

DHCP

DHCP Server

DHCP Relay

DHCPSnooping

DHCP Client

DHCP Option82

DHCP Option252

RMON

RMON

sFlow

sFlow v4/v5

IP SLA

IP SLA

Latency/Buffer

Latency Monitor

Monitor

Buffer Monitor

EFD

Elephant Flow Detection

NTP

NTP(Network Time Protocol)

Errdisable

Errdisable detection and recovery

DNS

Static DNS Client

LLDP

LLDP

Terminal Services

Command Line Interface

Configurations through CLl(Command Line Interface)

Help information

Banner configuration

Help information in English

Terminal service

Vty Terminal service

Console Terminal service

Configuration Management

Management interface

Inband management interface and configuration

Outband management interface and configuration

User privilege management

privileged user proirity and privileged commands

SNMP

Network management based on SNMPv1/v2c/v3

Public and private MIB

Public and private Trap

WEB

Configuration and management based on WEB UI

RPC-API

Configuration and management based on RPC-API

SmartConfig

SmartConfig(Automatically configuration when system start)

OVSDB

Configuration and management based on OVSDB

system profile configuration

change the system specifications by choose different STM Profiles

License control

Feature configuration based on License

Restore factory default configuration

Restore factory default configuration

File System

File system

File system(support directory and file management)

Upload and download

Upload and download files through FTP or TFTP

Upload and download files through Xmodem

Debugging And Maintenance

Debug

per-module Debug features

ICMP Debug

BHM

Software process monitor: BHM(Beat Heart Monitor)

Hardware Watch Dog

Log& alarm

CPU usage display and alarm

Memory usage display and alarm

Device temperature、PSU、FAN、status display and alarm

User operation logs

Management of logs, alarms, and debugging information

VCT

VCT(Virtual Cable Test)

system diagnostics

Detailed Diagnostic-information collection

Reboot

Manual reboot

Schedule Reboot

Reboot Information logging

network diagnostics

Ping

IPv6 Ping

Traceroute

mirror

Port mirror

Flow mirror

Remote mirror

Multi-destination mirror(m:n)

Use CPU as mirror source

Use CPU as mirror destination and analyze packet

ERSPAN

CPU statistics

To CPU/From CPU packets statistics

L2 Ping

layer2 network connectivity detection -L2Ping(MAC Ping/Trace)

UDLD

UDLD(Unidirectional Link Detection)

unidirectional

unidirectional forwarding of the fiber

Loopback

port loopback

hardware loopback(internal/external)

System time

Time configuration

Timezone

Version Upgrade

system soft

upgrade with the localimage file

ware upgrade

upgrade with the remote TFTP server

Uboot upgrade

Online upgrade Uboot

ACCESSORIES

Product

Quantity

Console Cable

1PCS

Power Cords

2PCS

Rack Mount Brackets

2PCS

Bracket Screws

10PCS

Rubber Pads

4PCS

Cat5e Cable

1PCS

Grounding Cable

1PCS

Tieline Buckle

2PCS

User Manual

1PCS

SFP 28 Dust Plug

4PCS

QSFP+Dust Plug

2PCS

ORDER INFORMATION

Product Name

Description

S6348-4X2Q-EI

48-port 2.5GBase-T L3 Managed Ethernet Switch with 2*40Gb QSFP+ And 4*25G/10G Uplinks,2*250W(1+1 Redundancy) Hot-swappable power module,2*Hot-swappable smart fan

S6348-4X2Q-SI

48-port 2.5GBase-T L3 Managed Ethernet Switch with 2*40Gb QSFP+ and 4*25G/10G Uplinks,1*200W fixed Power Supply,4*fixed Fans

Power supply module(AC)

AC/DC CRPS 250W/12V,185*73.5*40mm,Input Voltage 100-240Vac,50/60Hz,G1251AC+HVDC Full Digital

Power supply module(DC)

DC/DCCRPS 250W/12V,185*73.5*40mm,Input Voltage-36-72Vdc,G1251 AC+HVDC Full Digital

Software Linsence

EB,basic Layer3 software features,Pre installed

Software Linsence

MS, Full layer3 software license key

Relevant Products

S5720-30TX

S5720-30TX

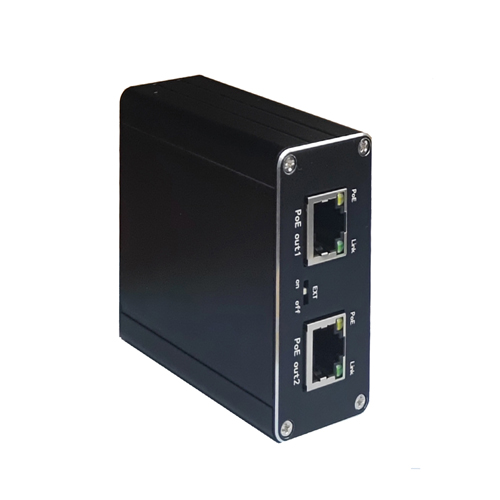

EXT102GAT

EXT102GAT

G08P8GE

G08P8GE
